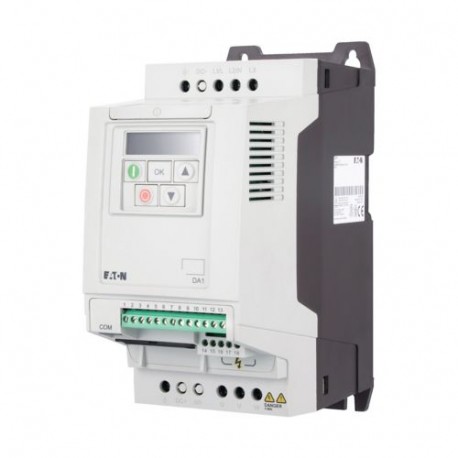

DA1-327D0FB-A20C 169090 Y7-169090 EATON ELECTRIC Variable frequency drive, 230 V AC, 3-phase, 7 A, 1.5 kW, I..
DA1-327D0FB-A20C
169090
Y7-169090
EATON - MOELLER
1 Pcs.
Automation > Frequency converter less than 1 kV
Power XL Frequency Converters
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A variable frequency drive, specifically the Eaton Moeller DA1-327D0FB-A20C, is deployed in electrical systems to control the rotational speed and torque of alternating current motors. These controllers allow machinery to adapt dynamically to varying mechanical loads while minimizing electrical stress.
Please note that pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Mains voltage: 200 V
- Mains frequency: 50/60 Hz
- Number of phases input: 3
- Number of phases output: 3
- Max. output frequency: 500 Hz
- Max. output voltage: 250 V
- Nominal output current I2N: 7 A
- Power consumption: 61.5 W
- Relative symmetric net frequency tolerance: 10 %
- Relative symmetric net voltage tolerance: 10 %
- Number of analogue outputs: 2
- Number of analogue inputs: 2
- Number of digital outputs: 2
- Number of digital inputs: 5
- With control element: Yes
- Application in industrial area permitted: Yes
More info
▲General specifications
UL report applies to both US and Canada
IEC/EN61800-3
CUL
RoHS, ISO 9001
UL File No.: E172143
EAC
RCM
UL Category Control No.: NMMS, NMMS7
CSA-C22.2 No. 14
UL
Certified by UL for use in Canada
Specification for general requirements: IEC/EN 61800-2
UL 508C
Safety: EN 61800-5-1: 2003
IEC/EN61800-5
UkrSEPRO
IEC/EN 61800-3
General
C2 ≤ 5 m, Radio interference level, maximum motor cable length
C3 ≤ 25 m, Radio interference level, maximum motor cable length
150 m, unscreened, maximum permissible, Motor feeder
200 m, screened, with motor choke, maximum permissible, Motor feeder
100 m, screened, maximum permissible, Motor feeder
Modbus-TCP, optional
EtherCAT, optional
CANopen®, built in
Ethernet IP, optional
DeviceNet, optional
PROFINET, optional
Modbus RTU, built in
OP-Bus (RS485), built in
PROFIBUS, optional
Yes
NEMA Other
Additional PCB protection
Breaking resistance
PC connection
Control unit
Radio interference suppression filter
Brake chopper
IGBT inverter
7-digital display assembly
DeviceNet
EtherNet/IP
CAN
Other bus systems
PROFIBUS
PROFINET IO
TCP/IP
C2, C3: depending on the motor cable length, the connected load, and ambient conditions. External radio interference suppression filters (optional) may be necessary.
Climatic environmental conditions
Max. 1000 m
Above 1000 m with 1 % derating per 100 m
Main circuit
35 W at 25% current and 50% speed
36 W at 50% current and 0% speed
43 W at 50% current and 50% speed
51 W at 100% current and 0% speed
51 W at 50% current and 90% speed
60 W at 100% current and 50% speed
71 W at 100% current and 90% speed
Speed control with slip compensation
U/f control
Optional: Vector control with feedback (CLV)
240 V AC, 3-phase
240 V AC, 3-phase
Motor rating
Apparent power
Braking function
Max. 100 % of rated operational current Ie, variable, DC - Main circuit
Max. 100 % of rated operational current Ie with external braking resistor - Main circuit
