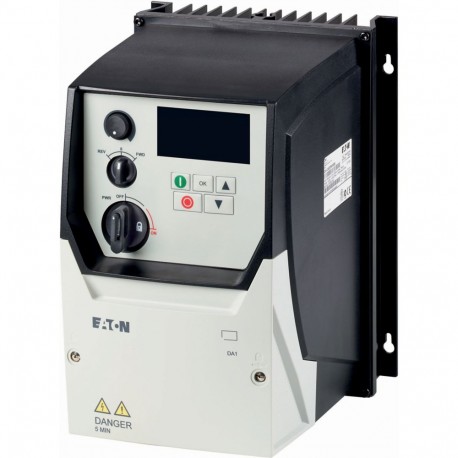

DA1-324D3FB-B6SC 169354 Y7-169354 EATON ELECTRIC Variable frequency drive, 230 V AC, 3-phase, 4.3 A, 0.75 kW..
DA1-324D3FB-B6SC
169354
Y7-169354
EATON - MOELLER
1 Pcs.
Automation > Frequency converter less than 1 kV
Power XL Frequency Converters
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Managing motor speeds and operational efficiency within automated systems is handled by this Eaton Moeller variable frequency drive, designated as DA1-324D3FB-B6SC. Frequency converters alter electrical power frequency to regulate motor velocity and optimize performance across diverse mechanical setups.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Mains voltage (EF006780): 200 V
- Mains frequency (EF006783): 50/60 Hz
- Number of phases input (EF007117): 3
- Number of phases output (EF006998): 3
- Max. output frequency (EF007350): 500 Hz
- Max. output voltage (EF009560): 250 V
- Nominal output current I2N (EF009561): 4.3 A
- Power consumption (EF000346): 39.75 W
- Relative symmetric net frequency tolerance (EF007454): 10 %
- Relative symmetric net voltage tolerance (EF007453): 10 %
- Number of analogue outputs (EF001995): 2
- Number of analogue inputs (EF001994): 2
- Number of digital outputs (EF001993): 2
- Number of digital inputs (EF001992): 5
- With control element (EF001538): Yes
- Application in industrial area permitted (EF007294): Yes
More info
▲General specifications
UL report applies to both US and Canada
Certified by UL for use in Canada
CSA-C22.2 No. 14
IEC/EN61800-5
UL Category Control No.: NMMS, NMMS7
RCM
Safety: EN 61800-5-1: 2003
IEC/EN 61800-3
EAC
CUL
UkrSEPRO
UL File No.: E172143
CE
IEC/EN61800-3
Specification for general requirements: IEC/EN 61800-2
RoHS, ISO 9001
UL
General
200 m, screened, with motor choke, maximum permissible, Motor feeder
100 m, screened, maximum permissible, Motor feeder
300 m, unscreened, with motor choke, maximum permissible, Motor feeder
C3 ≤ 25 m, Radio interference level, maximum motor cable length
150 m, unscreened, maximum permissible, Motor feeder
Modbus-TCP, optional
PROFIBUS, optional
OP-Bus (RS485), built in
PROFINET, optional
EtherCAT, optional
Modbus RTU, built in
DeviceNet, optional
Ethernet IP, optional
NEMA 4X
Additional PCB protection
PC connection
Control unit
Radio interference suppression filter
Internal DC link
Local controls
Breaking resistance
Brake chopper
IGBT inverter
DeviceNet
MODBUS
EtherNet/IP
PROFIBUS
PROFINET IO
Other bus systems
TCP/IP
Optional external radio interference suppression filter for longer motor cable lengths and for use in different EMC environments
Climatic environmental conditions
Above 1000 m with 1 % derating per 100 m
Max. 4000 m
Main circuit
33 W at 25% current and 50% speed
36 W at 50% current and 0% speed
40 W at 50% current and 50% speed
42 W at 50% current and 90% speed
50 W at 100% current and 50% speed
51 W at 100% current and 0% speed
59 W at 100% current and 90% speed
Sensorless vector control (SLV)
Optional: Vector control with feedback (CLV)
Speed control with slip compensation
240 V AC, 3-phase
230 V AC, 3-phase
Motor rating
Apparent power
Braking function
Max. 30 % MN, Standard - Main circuit
Max. 100 % of rated operational current Ie, variable, DC - Main circuit
