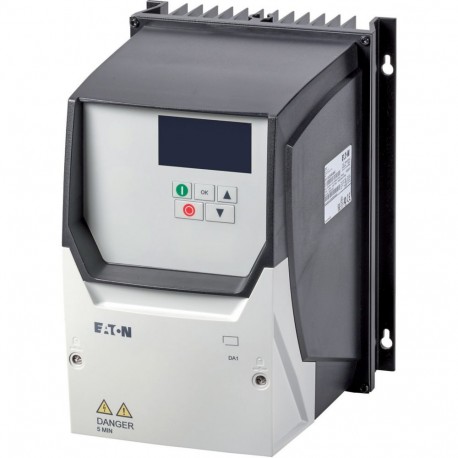

DA1-324D3FB-B66C 169353 Y7-169353 EATON ELECTRIC Variable frequency drive, 230 V AC, 3-phase, 4.3 A, 0.75 kW..
DA1-324D3FB-B66C
169353
Y7-169353
EATON - MOELLER
1 Pcs.
Automation > Frequency converter less than 1 kV
Power XL Frequency Converters
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Eaton Moeller DA1-324D3FB-B66C is a variable frequency drive designed for controlling alternating current motor speeds in automated industrial processes. Units of this type regulate the frequency and voltage supplied to electric motors, allowing for precise dynamic performance optimization and energy efficiency improvements in machinery. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Mains voltage (EF006780): 200 V
- Mains frequency (EF006783): 50/60 Hz
- Number of phases input (EF007117): 3
- Number of phases output (EF006998): 3
- Max. output frequency (EF007350): 500 Hz
- Max. output voltage (EF009560): 250 V
- Nominal output current I2N (EF009561): 4.3 A
- Power consumption (EF000346): 39.75 W
- Relative symmetric net frequency tolerance (EF007454): 10 %
- Relative symmetric net voltage tolerance (EF007453): 10 %
- Number of analogue outputs (EF001995): 2
- Number of analogue inputs (EF001994): 2
- Number of digital outputs (EF001993): 2
- Number of digital inputs (EF001992): 5
- With control element (EF001538): Yes
- Application in industrial area permitted (EF007294): Yes
More info
▲General specifications
CE
UL
UL Category Control No.: NMMS, NMMS7
Certified by UL for use in Canada
IEC/EN61800-5
RCM
Specification for general requirements: IEC/EN 61800-2
UL report applies to both US and Canada
CUL
EAC
IEC/EN 61800-3
IEC/EN61800-3
Safety: EN 61800-5-1: 2003
RoHS, ISO 9001
UL 508C
UL File No.: E172143
CSA-C22.2 No. 14
General
200 m, screened, with motor choke, maximum permissible, Motor feeder
100 m, screened, maximum permissible, Motor feeder
C2 ≤ 5 m, Radio interference level, maximum motor cable length
300 m, unscreened, with motor choke, maximum permissible, Motor feeder
150 m, unscreened, maximum permissible, Motor feeder
CANopen®, built in
PROFIBUS, optional
DeviceNet, optional
Ethernet IP, optional
PROFINET, optional
Modbus-TCP, optional
Modbus RTU, built in
OP-Bus (RS485), built in
NEMA 4X
Internal DC link
Brake chopper
Control unit
PC connection
IGBT inverter
Breaking resistance
Radio interference suppression filter
Additional PCB protection
DeviceNet
Other bus systems
PROFIBUS
MODBUS
PROFINET IO
EtherNet/IP
TCP/IP
Optional external radio interference suppression filter for longer motor cable lengths and for use in different EMC environments
Climatic environmental conditions
Max. 1000 m
Above 1000 m with 1 % derating per 100 m
Main circuit
33 W at 25% current and 50% speed
36 W at 50% current and 0% speed
40 W at 50% current and 50% speed
42 W at 50% current and 90% speed
50 W at 100% current and 50% speed
51 W at 100% current and 0% speed
59 W at 100% current and 90% speed
Sensorless vector control (SLV)
U/f control
Optional: Vector control with feedback (CLV)
240 V AC, 3-phase
240 V AC, 3-phase
Motor rating
Apparent power
Braking function
Max. 100 % of rated operational current Ie with external braking resistor - Main circuit
Max. 30 % MN, Standard - Main circuit
