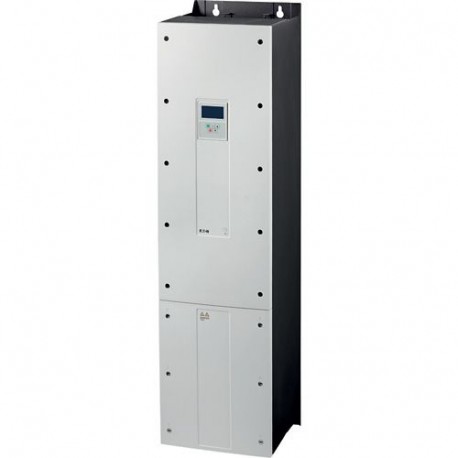

DA1-32248FB-B55C 169377 Y7-169377 EATON ELECTRIC Variable frequency drive, 230 V AC, 3-phase, 248 A, 75 kW, ..
DA1-32248FB-B55C
169377
Y7-169377
EATON - MOELLER
1 Pcs.
Automation > Frequency converter less than 1 kV
Power XL Frequency Converters
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A high-power variable frequency drive, part number DA1-32248FB-B55C from Eaton Moeller, delivers advanced motor control capabilities for large-scale industrial machinery. In industrial settings, frequency converters adjust power parameters to match operational demands, improving energy efficiency and safeguarding motors against electrical surges.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Mains voltage (EF006780): 200 V
- Mains frequency (EF006783): 50/60 Hz
- Number of phases input (EF007117): 3
- Number of phases output (EF006998): 3
- Max. output frequency (EF007350): 500 Hz
- Max. output voltage (EF009560): 250 V
- Nominal output current I2N (EF009561): 248 A
- Power consumption (EF000346): 1425 W
- Relative symmetric net frequency tolerance (EF007454): 10 %
- Relative symmetric net voltage tolerance (EF007453): 10 %
- Number of analogue outputs (EF001995): 2
- Number of analogue inputs (EF001994): 2
- Number of digital outputs (EF001993): 2
- Number of digital inputs (EF001992): 5
- With control element (EF001538): Yes
- Application in industrial area permitted (EF007294): Yes
More info
▲General specifications
UL report applies to both US and Canada
UL
CUL
RoHS, ISO 9001
IEC/EN61800-5
UkrSEPRO
IEC/EN61800-3
DNV
UL File No.: E172143
UL 508C
CE
UL Category Control No.: NMMS, NMMS7
Specification for general requirements: IEC/EN 61800-2
RCM
Certified by UL for use in Canada
EAC
IEC/EN 61800-3
Safety: EN 61800-5-1: 2003
General
C2 ≤ 5 m, Radio interference level, maximum motor cable length
150 m, unscreened, maximum permissible, Motor feeder
300 m, unscreened, with motor choke, maximum permissible, Motor feeder
100 m, screened, maximum permissible, Motor feeder
200 m, screened, with motor choke, maximum permissible, Motor feeder
CANopen®, built in
EtherCAT, optional
OP-Bus (RS485), built in
PROFIBUS, optional
SmartWire-DT, optional
Ethernet IP, optional
DeviceNet, optional
Modbus RTU, built in
Modbus-TCP, optional
In conjunction with DX-NET-SWD1 SmartWire DT module
IP55
OLED display
Additional PCB protection
Internal DC link
PC connection
Brake chopper
DC link choke
Breaking resistance
Control unit
IGBT inverter
MODBUS
PROFINET IO
PROFIBUS
CAN
DeviceNet
Other bus systems
TCP/IP
C2, C3: depending on the motor cable length, the connected load, and ambient conditions. External radio interference suppression filters (optional) may be necessary.
Climatic environmental conditions
Above 1000 m with 1 % derating per 100 m
Max. 4000 m
Main circuit
1340 W at 50% current and 90% speed
1540 W at 100% current and 0% speed
2030 W at 100% current and 50% speed
2510 W at 100% current and 90% speed
820 W at 25% current and 0% speed
820 W at 25% current and 50% speed
930 W at 50% current and 0% speed
Speed control with slip compensation
Optional: Vector control with feedback (CLV)
U/f control
230 V AC, 3-phase
240 V AC, 3-phase
Motor rating
Apparent power
Braking function
Max. 100 % of rated operational current Ie with external braking resistor - Main circuit
Max. 30 % MN, Standard - Main circuit
