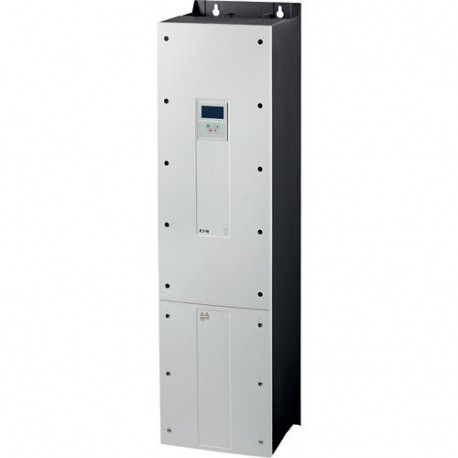

DA1-32202FB-B55C 169375 Y7-169375 EATON ELECTRIC Variable frequency drive, 230 V AC, 3-phase, 202 A, 55 kW, ..
DA1-32202FB-B55C
169375
Y7-169375
EATON - MOELLER
1 Pcs.
Automation > Frequency converter less than 1 kV
Power XL Frequency Converters
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A variable frequency drive, specifically the Eaton Moeller DA1-32202FB-B55C unit, provides dynamic speed regulation for AC induction motors in demanding industrial production lines. Engineers deploy such devices to enhance process accuracy, lower mechanical wear, and improve energy efficiency across diverse automation tasks. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Mains voltage (EF006780): 200 V
- Mains frequency (EF006783): 50/60 Hz
- Number of phases input (EF007117): 3
- Number of phases output (EF006998): 3
- Max. output frequency (EF007350): 500 Hz
- Max. output voltage (EF009560): 250 V
- Nominal output current I2N (EF009561): 202 A
- Power consumption (EF000346): 1100 W
- Relative symmetric net frequency tolerance (EF007454): 10 %
- Relative symmetric net voltage tolerance (EF007453): 10 %
- Number of analogue outputs (EF001995): 2
- Number of analogue inputs (EF001994): 2
- Number of digital outputs (EF001993): 2
- Number of digital inputs (EF001992): 5
- With control element (EF001538): Yes
- Application in industrial area permitted (EF007294): Yes
More info
▲General specifications
DNV
IEC/EN 61800-3
RCM
CSA-C22.2 No. 14
UL 508C
RoHS, ISO 9001
Safety: EN 61800-5-1: 2003
Certified by UL for use in Canada
IEC/EN61800-3
Specification for general requirements: IEC/EN 61800-2
UkrSEPRO
CE
IEC/EN61800-5
CUL
EAC
UL
UL File No.: E172143
UL Category Control No.: NMMS, NMMS7
General
C3 ≤ 25 m, Radio interference level, maximum motor cable length
150 m, unscreened, maximum permissible, Motor feeder
200 m, screened, with motor choke, maximum permissible, Motor feeder
100 m, screened, maximum permissible, Motor feeder
300 m, unscreened, with motor choke, maximum permissible, Motor feeder
EtherCAT, optional
Modbus-TCP, optional
SmartWire-DT, optional
PROFINET, optional
OP-Bus (RS485), built in
Ethernet IP, optional
CANopen®, built in
PROFIBUS, optional
Modbus RTU, built in
In conjunction with DX-NET-SWD1 SmartWire DT module
IP55
Additional PCB protection
IGBT inverter
Breaking resistance
Internal DC link
DC link choke
Radio interference suppression filter
Control unit
Brake chopper
PC connection
EtherNet/IP
DeviceNet
CAN
MODBUS
PROFIBUS
PROFINET IO
TCP/IP
C2, C3: depending on the motor cable length, the connected load, and ambient conditions. External radio interference suppression filters (optional) may be necessary.
Climatic environmental conditions
Max. 1000 m
Above 1000 m with 1 % derating per 100 m
Main circuit
1460 W at 100% current and 50% speed
1900 W at 100% current and 90% speed
2440 W at 50% current and 90% speed
450 W at 25% current and 0% speed
570 W at 25% current and 50% speed
620 W at 50% current and 0% speed
880 W at 50% current and 50% speed
U/f control
Sensorless vector control (SLV)
Speed control with slip compensation
240 V AC, 3-phase
240 V AC, 3-phase
Motor rating
Apparent power
Braking function
Max. 100 % of rated operational current Ie with external braking resistor - Main circuit
Max. 100 % of rated operational current Ie, variable, DC - Main circuit
