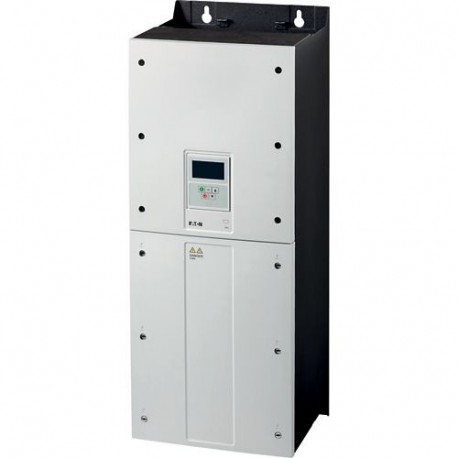

DA1-32180FB-B55C 169373 Y7-169373 EATON ELECTRIC Variable frequency drive, 230 V AC, 3-phase, 180 A, 55 kW, ..
DA1-32180FB-B55C
169373
Y7-169373
EATON - MOELLER
1 Pcs.
Automation > Frequency converter less than 1 kV
Power XL Frequency Converters
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Providing robust speed regulation for demanding industrial loads, the Eaton Moeller DA1-32180FB-B55C variable frequency drive ensures precise motor control in complex automation cells. Manufacturing engineers select these reliable drives to manage torque profiles and optimize motion control within heavy production machinery.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Mains voltage (EF006780): 200 V
- Mains frequency (EF006783): 50/60 Hz
- Number of phases input (EF007117): 3
- Number of phases output (EF006998): 3
- Max. output frequency (EF007350): 500 Hz
- Max. output voltage (EF009560): 250 V
- Nominal output current I2N (EF009561): 180 A
- Power consumption (EF000346): 945 W
- Relative symmetric net frequency tolerance (EF007454): 10 %
- Relative symmetric net voltage tolerance (EF007453): 10 %
- Number of analogue outputs (EF001995): 2
- Number of analogue inputs (EF001994): 2
- Number of digital outputs (EF001993): 2
- Number of digital inputs (EF001992): 5
- With control element (EF001538): Yes
- Application in industrial area permitted (EF007294): Yes
More info
▲General specifications
Safety: EN 61800-5-1: 2003
UkrSEPRO
EAC
UL 508C
UL File No.: E172143
Certified by UL for use in Canada
UL Category Control No.: NMMS, NMMS7
IEC/EN61800-5
Specification for general requirements: IEC/EN 61800-2
DNV
IEC/EN 61800-3
UL
RCM
CE
CSA-C22.2 No. 14
IEC/EN61800-3
CUL
RoHS, ISO 9001
General
C3 ≤ 25 m, Radio interference level, maximum motor cable length
C2 ≤ 5 m, Radio interference level, maximum motor cable length
200 m, screened, with motor choke, maximum permissible, Motor feeder
300 m, unscreened, with motor choke, maximum permissible, Motor feeder
150 m, unscreened, maximum permissible, Motor feeder
PROFINET, optional
SmartWire-DT, optional
OP-Bus (RS485), built in
EtherCAT, optional
Modbus RTU, built in
PROFIBUS, optional
CANopen®, built in
DeviceNet, optional
Modbus-TCP, optional
Yes
IP55
PC connection
Control unit
Brake chopper
Radio interference suppression filter
DC link choke
Breaking resistance
Additional PCB protection
Internal DC link
IGBT inverter
CAN
PROFINET IO
Other bus systems
DeviceNet
MODBUS
PROFIBUS
TCP/IP
Optional external radio interference suppression filter for longer motor cable lengths and for use in different EMC environments
Climatic environmental conditions
Max. 4000 m
Max. 1000 m
Main circuit
1530 W at 100% current and 50% speed
1860 W at 100% current and 90% speed
400 W at 25% current and 0% speed
540 W at 25% current and 50% speed
600 W at 50% current and 0% speed
780 W at 50% current and 50% speed
860 W at 50% current and 90% speed
U/f control
Optional: Vector control with feedback (CLV)
Sensorless vector control (SLV)
230 V AC, 3-phase
230 V AC, 3-phase
Motor rating
Apparent power
Braking function
Max. 30 % MN, Standard - Main circuit
Max. 100 % of rated operational current Ie with external braking resistor - Main circuit
