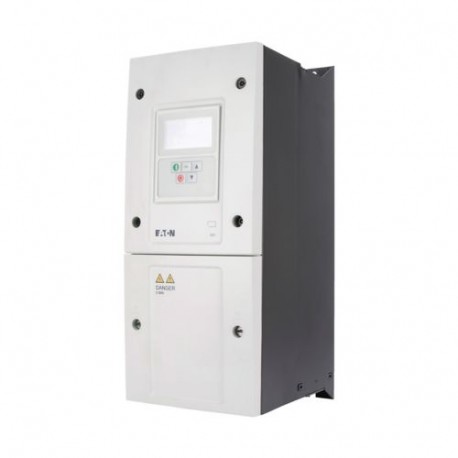

DA1-32046FB-B55C 169363 Y7-169363 EATON ELECTRIC Variable frequency drive, 230 V AC, 3-phase, 46 A, 11 kW, I..
DA1-32046FB-B55C
169363
Y7-169363
EATON - MOELLER
1 Pcs.
Automation > Frequency converter less than 1 kV
Power XL Frequency Converters
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The DA1-32046FB-B55C 169363 Y7-169363 EATON ELECTRIC Variable frequency drive by Eaton Moeller is engineered for high-performance control of heavy-duty industrial motors. Variable frequency drives allow operators to adjust motor speeds dynamically, reducing mechanical wear and optimizing energy consumption.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Mains voltage (EF006780): 200 V
- Mains frequency (EF006783): 50/60 Hz
- Number of phases input (EF007117): 3
- Number of phases output (EF006998): 3
- Max. output frequency (EF007350): 500 Hz
- Max. output voltage (EF009560): 250 V
- Nominal output current I2N (EF009561): 46 A
- Power consumption (EF000346): 264 W
- Relative symmetric net frequency tolerance (EF007454): 10 %
- Relative symmetric net voltage tolerance (EF007453): 10 %
- Number of analogue outputs (EF001995): 2
- Number of analogue inputs (EF001994): 2
- Number of digital outputs (EF001993): 2
- Number of digital inputs (EF001992): 5
- With control element (EF001538): Yes
- Application in industrial area permitted (EF007294): Yes
More info
▲General specifications
Safety: EN 61800-5-1: 2003
UL report applies to both US and Canada
CSA-C22.2 No. 14
DNV
IEC/EN61800-3
CUL
EAC
Specification for general requirements: IEC/EN 61800-2
UkrSEPRO
UL
IEC/EN 61800-3
IEC/EN61800-5
RoHS, ISO 9001
UL 508C
UL Category Control No.: NMMS, NMMS7
Certified by UL for use in Canada
RCM
UL File No.: E172143
General
300 m, unscreened, with motor choke, maximum permissible, Motor feeder
C2 ≤ 5 m, Radio interference level, maximum motor cable length
200 m, screened, with motor choke, maximum permissible, Motor feeder
150 m, unscreened, maximum permissible, Motor feeder
100 m, screened, maximum permissible, Motor feeder
Modbus-TCP, optional
PROFINET, optional
SmartWire-DT, optional
DeviceNet, optional
OP-Bus (RS485), built in
Ethernet IP, optional
Modbus RTU, built in
CANopen®, built in
PROFIBUS, optional
Yes
IP55
Breaking resistance
Additional PCB protection
IGBT inverter
Control unit
Brake chopper
PC connection
Radio interference suppression filter
OLED display
CAN
EtherNet/IP
MODBUS
Other bus systems
DeviceNet
PROFINET IO
TCP/IP
C2, C3: depending on the motor cable length, the connected load, and ambient conditions. External radio interference suppression filters (optional) may be necessary.
Climatic environmental conditions
Max. 4000 m
Above 1000 m with 1 % derating per 100 m
Main circuit
227 W at 25% current and 50% speed
246 W at 50% current and 0% speed
320 W at 100% current and 0% speed
320 W at 50% current and 50% speed
407 W at 50% current and 90% speed
429 W at 100% current and 50% speed
543 W at 100% current and 90% speed
Sensorless vector control (SLV)
U/f control
Speed control with slip compensation
240 V AC, 3-phase
240 V AC, 3-phase
Motor rating
Apparent power
Braking function
Max. 30 % MN, Standard - Main circuit
Max. 100 % of rated operational current Ie with external braking resistor - Main circuit
