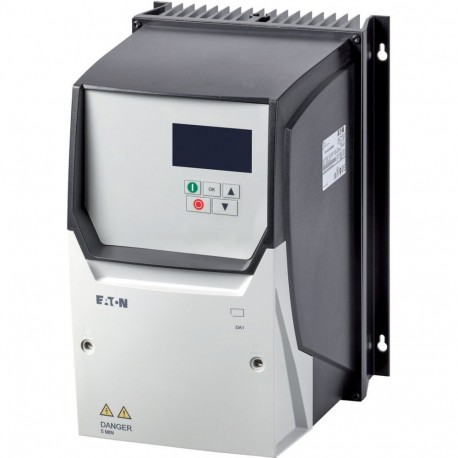

DA1-32018FB-B66C 169359 Y7-169359 EATON ELECTRIC Variable frequency drive, 230 V AC, 3-phase, 18 A, 4 kW, IP..
DA1-32018FB-B66C
169359
Y7-169359
EATON - MOELLER
1 Pcs.
Automation > Frequency converter less than 1 kV
Power XL Frequency Converters
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Eaton Moeller variable frequency drive, identified by part number DA1-32018FB-B66C, serves as an electronic motor controller to modulate speed and output in industrial machinery. Devices of this type are routinely integrated into automated production equipment, fans, and compressors to ensure precise motion profiles and protect against electrical overloads.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Mains voltage (EF006780): 200 V
- Mains frequency (EF006783): 50/60 Hz
- Number of phases input (EF007117): 3
- Number of phases output (EF006998): 3
- Max. output frequency (EF007350): 500 Hz
- Max. output voltage (EF009560): 250 V
- Nominal output current I2N (EF009561): 18 A
- Power consumption (EF000346): 160 W
- Relative symmetric net frequency tolerance (EF007454): 10 %
- Relative symmetric net voltage tolerance (EF007453): 10 %
- Number of analogue outputs (EF001995): 2
- Number of analogue inputs (EF001994): 2
- Number of digital outputs (EF001993): 2
- Number of digital inputs (EF001992): 5
- With control element (EF001538): Yes
- Application in industrial area permitted (EF007294): Yes
More info
▲General specifications
UL 508C
UL report applies to both US and Canada
CUL
EAC
UkrSEPRO
IEC/EN61800-3
CSA-C22.2 No. 14
Specification for general requirements: IEC/EN 61800-2
UL Category Control No.: NMMS, NMMS7
Safety: EN 61800-5-1: 2003
IEC/EN61800-5
RCM
RoHS, ISO 9001
UL
CE
Certified by UL for use in Canada
IEC/EN 61800-3
General
300 m, unscreened, with motor choke, maximum permissible, Motor feeder
C2 ≤ 5 m, Radio interference level, maximum motor cable length
100 m, screened, maximum permissible, Motor feeder
150 m, unscreened, maximum permissible, Motor feeder
200 m, screened, with motor choke, maximum permissible, Motor feeder
PROFIBUS, optional
DeviceNet, optional
Modbus RTU, built in
OP-Bus (RS485), built in
PROFINET, optional
EtherCAT, optional
CANopen®, built in
Modbus-TCP, optional
IP66
OLED display
Control unit
Breaking resistance
Radio interference suppression filter
Brake chopper
Additional PCB protection
Internal DC link
IGBT inverter
DeviceNet
CAN
EtherNet/IP
Other bus systems
PROFINET IO
MODBUS
TCP/IP
Optional external radio interference suppression filter for longer motor cable lengths and for use in different EMC environments
Climatic environmental conditions
Above 1000 m with 1 % derating per 100 m
Max. 4000 m
Main circuit
122 W at 50% current and 90% speed
172 W at 100% current and 0% speed
175 W at 100% current and 50% speed
178 W at 100% current and 90% speed
75 W at 25% current and 0% speed
86 W at 25% current and 50% speed
91 W at 50% current and 0% speed
Sensorless vector control (SLV)
Optional: Vector control with feedback (CLV)
Speed control with slip compensation
230 V AC, 3-phase
230 V AC, 3-phase
Motor rating
Apparent power
Braking function
Max. 100 % of rated operational current Ie with external braking resistor - Main circuit
Max. 30 % MN, Standard - Main circuit
