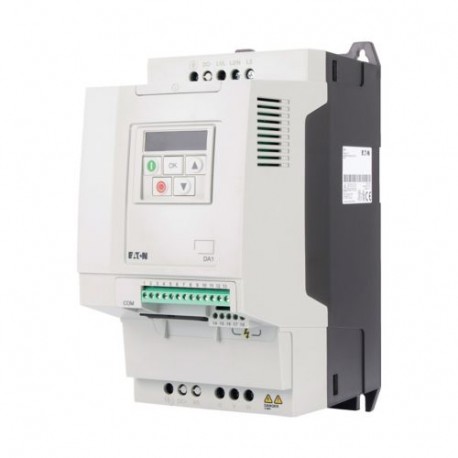

DA1-32018FB-A20C 169096 Y7-169096 EATON ELECTRIC Variable frequency drive, 230 V AC, 3-phase, 18 A, 4 kW, IP..
DA1-32018FB-A20C
169096
Y7-169096
EATON - MOELLER
1 Pcs.
Automation > Frequency converter less than 1 kV
Power XL Frequency Converters
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Eaton Moeller part number DA1-32018FB-A20C is a variable frequency drive designed for precise motor speed regulation and process optimization in industrial automation systems. Variable frequency drives are commonly installed in manufacturing plants to control pump flow rates, conveyor speeds, and fan outputs while reducing electrical consumption. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Manufacturer: Eaton Moeller
- Manufacturer part number: DA1-32018FB-A20C
- Catalogue code: 169096
More info
▲General specifications
UkrSEPRO
CSA-C22.2 No. 14
IEC/EN 61800-3
CUL
UL 508C
UL Category Control No.: NMMS, NMMS7
UL report applies to both US and Canada
Certified by UL for use in Canada
RCM
CE
RoHS, ISO 9001
EAC
Specification for general requirements: IEC/EN 61800-2
UL
UL File No.: E172143
Safety: EN 61800-5-1: 2003
IEC/EN61800-5
General
C3 ≤ 25 m, Radio interference level, maximum motor cable length
100 m, screened, maximum permissible, Motor feeder
200 m, screened, with motor choke, maximum permissible, Motor feeder
C2 ≤ 5 m, Radio interference level, maximum motor cable length
300 m, unscreened, with motor choke, maximum permissible, Motor feeder
EtherCAT, optional
CANopen®, built in
SmartWire-DT, optional
Modbus RTU, built in
Modbus-TCP, optional
PROFIBUS, optional
DeviceNet, optional
Ethernet IP, optional
PROFINET, optional
Yes
NEMA Other
7-digital display assembly
PC connection
Internal DC link
Control unit
Breaking resistance
Radio interference suppression filter
IGBT inverter
Additional PCB protection
CAN
MODBUS
PROFINET IO
Other bus systems
DeviceNet
PROFIBUS
TCP/IP
Optional external radio interference suppression filter for longer motor cable lengths and for use in different EMC environments
Climatic environmental conditions
Max. 1000 m
Max. 4000 m
Main circuit
122 W at 50% current and 90% speed
172 W at 100% current and 0% speed
175 W at 100% current and 50% speed
178 W at 100% current and 90% speed
75 W at 25% current and 0% speed
86 W at 25% current and 50% speed
91 W at 50% current and 0% speed
U/f control
Speed control with slip compensation
Sensorless vector control (SLV)
230 V AC, 3-phase
240 V AC, 3-phase
Motor rating
Apparent power
Braking function
Max. 100 % of rated operational current Ie, variable, DC - Main circuit
Max. 100 % of rated operational current Ie with external braking resistor - Main circuit
