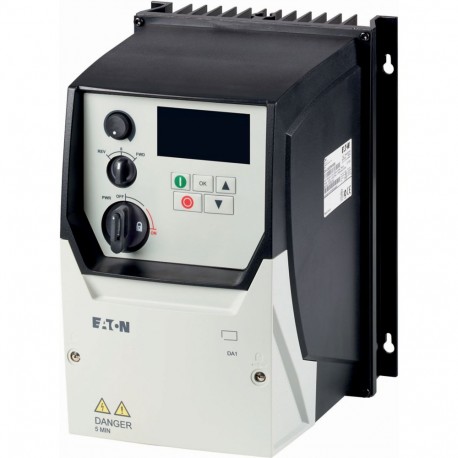

DA1-32011FB-B6SC 169358 Y7-169358 EATON ELECTRIC Variable frequency drive, 230 V AC, 3-phase, 10.5 A, 2.2 kW..
DA1-32011FB-B6SC
169358
Y7-169358
EATON - MOELLER
1 Pcs.
Automation > Frequency converter less than 1 kV
Power XL Frequency Converters
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
This Eaton Moeller variable frequency drive, referenced by model number DA1-32011FB-B6SC, offers precise frequency and voltage adjustment for standard three-phase electric motors. Variable frequency drives are essential components in automated setups, enabling seamless acceleration, deceleration, and speed regulation for diverse mechanical loads.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Mains voltage (EF006780): 200 V
- Mains frequency (EF006783): 50/60 Hz
- Number of phases input (EF007117): 3
- Number of phases output (EF006998): 3
- Max. output frequency (EF007350): 500 Hz
- Max. output voltage (EF009560): 250 V
- Nominal output current I2N (EF009561): 10.5 A
- Power consumption (EF000346): 90.2 W
- Relative symmetric net frequency tolerance (EF007454): 10 %
- Relative symmetric net voltage tolerance (EF007453): 10 %
- Number of analogue outputs (EF001995): 2
- Number of analogue inputs (EF001994): 2
- Number of digital outputs (EF001993): 2
- Number of digital inputs (EF001992): 5
- With control element (EF001538): Yes
- Application in industrial area permitted (EF007294): Yes
More info
▲General specifications
RoHS, ISO 9001
UL 508C
RCM
Safety: EN 61800-5-1: 2003
IEC/EN61800-3
UL File No.: E172143
UL Category Control No.: NMMS, NMMS7
CSA-C22.2 No. 14
IEC/EN61800-5
IEC/EN 61800-3
UkrSEPRO
UL
EAC
Specification for general requirements: IEC/EN 61800-2
CE
UL report applies to both US and Canada
Certified by UL for use in Canada
General
C2 ≤ 5 m, Radio interference level, maximum motor cable length
200 m, screened, with motor choke, maximum permissible, Motor feeder
150 m, unscreened, maximum permissible, Motor feeder
C3 ≤ 25 m, Radio interference level, maximum motor cable length
100 m, screened, maximum permissible, Motor feeder
OP-Bus (RS485), built in
Ethernet IP, optional
PROFIBUS, optional
CANopen®, built in
DeviceNet, optional
Modbus-TCP, optional
PROFINET, optional
Modbus RTU, built in
NEMA 4X
OLED display
IGBT inverter
Additional PCB protection
Breaking resistance
Brake chopper
Control unit
Radio interference suppression filter
Local controls
PC connection
DeviceNet
Other bus systems
MODBUS
EtherNet/IP
PROFIBUS
PROFINET IO
TCP/IP
Optional external radio interference suppression filter for longer motor cable lengths and for use in different EMC environments
Climatic environmental conditions
Max. 1000 m
Max. 4000 m
Main circuit
42 W at 50% current and 0% speed
43 W at 25% current and 0% speed
51 W at 25% current and 50% speed
62 W at 50% current and 50% speed
74 W at 100% current and 0% speed
74 W at 50% current and 90% speed
90 W at 100% current and 50% speed
U/f control
Speed control with slip compensation
Optional: Vector control with feedback (CLV)
240 V AC, 3-phase
240 V AC, 3-phase
Motor rating
Apparent power
Braking function
Max. 100 % of rated operational current Ie, variable, DC - Main circuit
Max. 100 % of rated operational current Ie with external braking resistor - Main circuit
