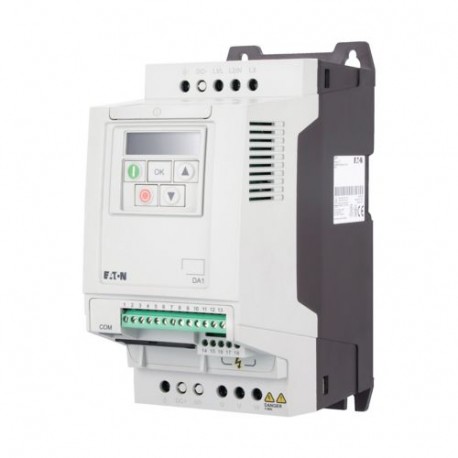

DA1-127D0FB-A20C 169081 Y7-169081 EATON ELECTRIC Variable frequency drive, 230 V AC, 1-phase, 7 A, 1.5 kW, I..
DA1-127D0FB-A20C
DA1-127D0FB-A20C
Y7-169081
EATON - MOELLER
1 unit
Automation > Frequency converter less than 1 kV
Power XL Frequency Converters
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Designed for dynamic motor control, the Eaton Moeller DA1-127D0FB-A20C is a variable frequency drive that allows operators to finely adjust motor speeds for optimal process output. Engineers integrate variable frequency drives into automated systems to protect equipment and improve overall operational efficiency. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Mains voltage: 200 V
- Mains frequency: 50/60 Hz
- Number of phases input: 1
- Number of phases output: 3
- Max. output frequency: 500 Hz
- Max. output voltage: 250 V
- Nominal output current I2N: 7 A
- Max. output at quadratic load at rated output voltage: 1.5 kW
- Max. output at linear load at rated output voltage: 1.5 kW
- Power consumption: 63 W
- Relative symmetric net frequency tolerance: 10 %
- Relative symmetric net voltage tolerance: 10 %
- Number of analogue outputs: 2
- Number of analogue inputs: 2
- Number of digital outputs: 2
- Number of digital inputs: 5
More info
▲General specifications
CE
CUL
IEC/EN61800-3
UL Category Control No.: NMMS, NMMS7
UL report applies to both US and Canada
Specification for general requirements: IEC/EN 61800-2
UL
RCM
UL 508C
UkrSEPRO
UL File No.: E172143
CSA-C22.2 No. 14
IEC/EN 61800-3
Safety: EN 61800-5-1: 2003
EAC
IEC/EN61800-5
RoHS, ISO 9001
General
C1 ≤ 1 m, Radio interference level, maximum motor cable length
C3 ≤ 25 m, Radio interference level, maximum motor cable length
C2 ≤ 5 m, Radio interference level, maximum motor cable length
150 m, unscreened, maximum permissible, Motor feeder
300 m, unscreened, with motor choke, maximum permissible, Motor feeder
100 m, screened, maximum permissible, Motor feeder
Modbus RTU, built in
Ethernet IP, optional
PROFIBUS, optional
DeviceNet, optional
Modbus-TCP, optional
OP-Bus (RS485), built in
SmartWire-DT, optional
CANopen®, built in
PROFINET, optional
In conjunction with DX-NET-SWD1 SmartWire DT module
NEMA Other
Control unit
Additional PCB protection
IGBT inverter
PC connection
Radio interference suppression filter
Brake chopper
Breaking resistance
7-digital display assembly
PROFIBUS
CAN
Other bus systems
EtherNet/IP
MODBUS
PROFINET IO
TCP/IP
C1: for conducted emissions only
C2, C3: depending on the motor cable length, the connected load, and ambient conditions. External radio interference suppression filters (optional) may be necessary.
Climatic environmental conditions
Max. 4000 m
Above 1000 m with 1 % derating per 100 m
Main circuit
38 W at 25% current and 50% speed
39 W at 50% current and 0% speed
46 W at 50% current and 50% speed
54 W at 50% current and 90% speed
55 W at 100% current and 0% speed
66 W at 100% current and 50% speed
77 W at 100% current and 90% speed
U/f control
Optional: Vector control with feedback (CLV)
Sensorless vector control (SLV)
240 V AC, 3-phase
240 V AC, 1-phase
Motor rating
Apparent power
Braking function
Max. 30 % MN, Standard - Main circuit
Max. 100 % of rated operational current Ie, variable, DC - Main circuit
