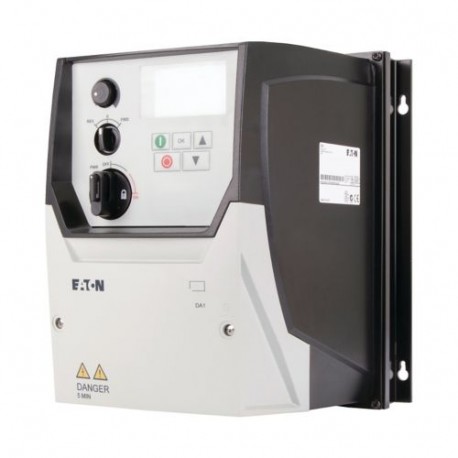

DA1-124D3FB-B6SC 169348 Y7-169348 EATON ELECTRIC Variable frequency drive, 230 V AC, 1-phase, 4.3 A, 0.75 kW..
DA1-124D3FB-B6SC
169348
Y7-169348
EATON - MOELLER
1 Pcs.
Automation > Frequency converter less than 1 kV
Power XL Frequency Converters
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Eaton Moeller DA1-124D3FB-B6SC variable frequency drive controls AC motor performance in commercial and industrial automation frameworks. These drives allow operators to adjust motor speed dynamically, reducing mechanical wear and enhancing process efficiency. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Mains voltage (EF006780): 200 V
- Mains frequency (EF006783): 50/60 Hz
- Number of phases input (EF007117): 1
- Number of phases output (EF006998): 3
- Max. output frequency (EF007350): 500 Hz
- Max. output voltage (EF009560): 250 V
- Nominal output current I2N (EF009561): 4.3 A
- Power consumption (EF000346): 45.75 W
- Relative symmetric net frequency tolerance (EF007454): 10 %
- Relative symmetric net voltage tolerance (EF007453): 10 %
- Number of analogue outputs (EF001995): 2
- Number of analogue inputs (EF001994): 2
- Number of digital outputs (EF001993): 2
- Number of digital inputs (EF001992): 5
- With control element (EF001538): Yes
- Application in industrial area permitted (EF007294): Yes
More info
▲General specifications
CUL
Specification for general requirements: IEC/EN 61800-2
CE
Certified by UL for use in Canada
CSA-C22.2 No. 14
UL
RCM
UL File No.: E172143
IEC/EN 61800-3
UL report applies to both US and Canada
IEC/EN61800-3
IEC/EN61800-5
RoHS, ISO 9001
UL 508C
EAC
Safety: EN 61800-5-1: 2003
UL Category Control No.: NMMS, NMMS7
General
100 m, screened, maximum permissible, Motor feeder
C3 ≤ 25 m, Radio interference level, maximum motor cable length
300 m, unscreened, with motor choke, maximum permissible, Motor feeder
C2 ≤ 5 m, Radio interference level, maximum motor cable length
150 m, unscreened, maximum permissible, Motor feeder
C1 ≤ 1 m, Radio interference level, maximum motor cable length
Ethernet IP, optional
OP-Bus (RS485), built in
PROFIBUS, optional
PROFINET, optional
Modbus RTU, built in
Modbus-TCP, optional
EtherCAT, optional
DeviceNet, optional
NEMA 4X
Brake chopper
Internal DC link
Additional PCB protection
Local controls
IGBT inverter
Radio interference suppression filter
OLED display
PC connection
Breaking resistance
DeviceNet
CAN
Other bus systems
MODBUS
PROFINET IO
EtherNet/IP
TCP/IP
C1: for conducted emissions only
Optional external radio interference suppression filter for longer motor cable lengths and for use in different EMC environments
Climatic environmental conditions
Max. 4000 m
Max. 1000 m
Main circuit
35 W at 25% current and 50% speed
38 W at 50% current and 0% speed
38 W at 50% current and 50% speed
42 W at 100% current and 0% speed
42 W at 50% current and 90% speed
53 W at 100% current and 50% speed
64 W at 100% current and 90% speed
U/f control
Optional: Vector control with feedback (CLV)
Speed control with slip compensation
240 V AC, 3-phase
230 V AC, 1-phase
Motor rating
Apparent power
Braking function
Max. 100 % of rated operational current Ie with external braking resistor - Main circuit
Max. 100 % of rated operational current Ie, variable, DC - Main circuit
