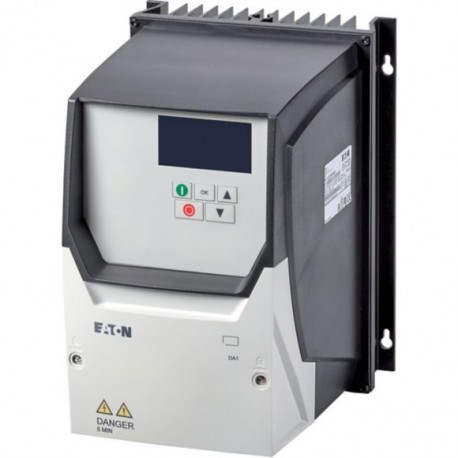

DA1-124D3FB-B66C 169347 Y7-169347 EATON ELECTRIC Variable frequency drive, 230 V AC, 1-phase, 4.3 A, 0.75 kW..
DA1-124D3FB-B66C
169347
Y7-169347
EATON - MOELLER
1 Pcs.
Automation > Frequency converter less than 1 kV
Power XL Frequency Converters
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The Eaton Moeller DA1-124D3FB-B66C variable frequency drive offers robust speed control in environments exposed to moisture and dust, protecting internal components while regulating motor output.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Manufacturer: Eaton Moeller
- Manufacturer part number: DA1-124D3FB-B66C
- Catalogue code: 169347
More info
▲General specifications
RCM
IEC/EN 61800-3
UL
UL File No.: E172143
IEC/EN61800-5
IEC/EN61800-3
Certified by UL for use in Canada
CE
CSA-C22.2 No. 14
Specification for general requirements: IEC/EN 61800-2
UL Category Control No.: NMMS, NMMS7
RoHS, ISO 9001
UL report applies to both US and Canada
UkrSEPRO
Safety: EN 61800-5-1: 2003
UL 508C
EAC
General
100 m, screened, maximum permissible, Motor feeder
C1 ≤ 1 m, Radio interference level, maximum motor cable length
C2 ≤ 5 m, Radio interference level, maximum motor cable length
C3 ≤ 25 m, Radio interference level, maximum motor cable length
200 m, screened, with motor choke, maximum permissible, Motor feeder
300 m, unscreened, with motor choke, maximum permissible, Motor feeder
PROFIBUS, optional
Modbus-TCP, optional
DeviceNet, optional
PROFINET, optional
EtherCAT, optional
OP-Bus (RS485), built in
Modbus RTU, built in
Ethernet IP, optional
NEMA 4X
PC connection
Brake chopper
Additional PCB protection
Control unit
Breaking resistance
IGBT inverter
OLED display
Radio interference suppression filter
PROFIBUS
MODBUS
PROFINET IO
CAN
DeviceNet
Other bus systems
TCP/IP
C1: for conducted emissions only
Optional external radio interference suppression filter for longer motor cable lengths and for use in different EMC environments
Climatic environmental conditions
Max. 4000 m
Max. 1000 m
Main circuit
35 W at 25% current and 50% speed
38 W at 50% current and 0% speed
38 W at 50% current and 50% speed
42 W at 100% current and 0% speed
42 W at 50% current and 90% speed
53 W at 100% current and 50% speed
64 W at 100% current and 90% speed
U/f control
Optional: Vector control with feedback (CLV)
Sensorless vector control (SLV)
240 V AC, 3-phase
230 V AC, 1-phase
Motor rating
Apparent power
Braking function
Max. 100 % of rated operational current Ie, variable, DC - Main circuit
Max. 100 % of rated operational current Ie with external braking resistor - Main circuit
