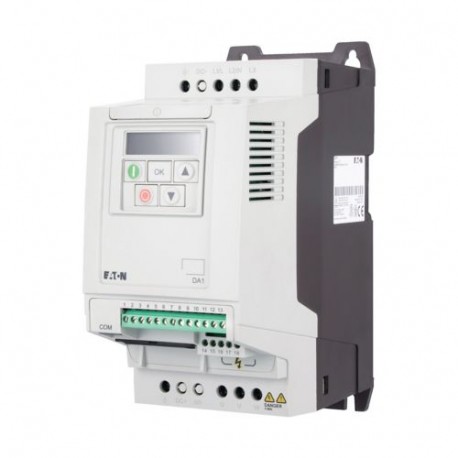

DA1-124D3FB-A20C 169078 Y7-169078 EATON ELECTRIC Variable frequency drive, 230 V AC, 1-phase, 4.3 A, 0.75 kW..
DA1-124D3FB-A20C
169078
Y7-169078
EATON - MOELLER
1 Pcs.
Automation > Frequency converter less than 1 kV
Power XL Frequency Converters
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Model number DA1-124D3FB-A20C is an Eaton Moeller Variable frequency drive built to govern single-phase motor operations across commercial and industrial machinery. These units allow operators to dynamically adjust motor speeds, limit startup currents, and protect rotating mechanical assemblies against electrical faults.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Manufacturer: Eaton Moeller
- Manufacturer part number: DA1-124D3FB-A20C
- Catalogue code: 169078
- Catalogue title: DA1-124D3FB-A20C 169078 Y7-169078 EATON ELECTRIC Variable frequency drive, 230 V AC, 1-phase, 4.3 A, 0.75 kW..
- Product description: General specifications Product Name Eaton DA1 Variable frequency drive Catalog Number 169078 Model Code DA1-124D3FB-A20C EAN 4015081655656 Product Length/Depth 186 mm Product Height 231 mm Product Width 107 mm Product We
- Manufacturer summary: Variable frequency drive, 230 V AC, 1-phase, 4.3 A, 0.75 kW, IP20/NEMA 0, Radio interference suppression filter, 7-digital display assembly DA1-124D3FB-A20C
More info
▲General specifications
UL Category Control No.: NMMS, NMMS7
EAC
Specification for general requirements: IEC/EN 61800-2
RoHS, ISO 9001
UL File No.: E172143
UL 508C
RCM
UkrSEPRO
Certified by UL for use in Canada
IEC/EN 61800-3
UL report applies to both US and Canada
Safety: EN 61800-5-1: 2003
IEC/EN61800-3
CUL
CE
CSA-C22.2 No. 14
UL
General
C1 ≤ 1 m, Radio interference level, maximum motor cable length
C2 ≤ 5 m, Radio interference level, maximum motor cable length
C3 ≤ 25 m, Radio interference level, maximum motor cable length
100 m, screened, maximum permissible, Motor feeder
200 m, screened, with motor choke, maximum permissible, Motor feeder
300 m, unscreened, with motor choke, maximum permissible, Motor feeder
Ethernet IP, optional
DeviceNet, optional
PROFIBUS, optional
OP-Bus (RS485), built in
Modbus-TCP, optional
SmartWire-DT, optional
EtherCAT, optional
Modbus RTU, built in
PROFINET, optional
In conjunction with DX-NET-SWD1 SmartWire DT module
NEMA Other
Breaking resistance
Control unit
Brake chopper
7-digital display assembly
Radio interference suppression filter
Internal DC link
Additional PCB protection
IGBT inverter
PROFINET IO
EtherNet/IP
CAN
Other bus systems
MODBUS
DeviceNet
TCP/IP
C1: for conducted emissions only
Optional external radio interference suppression filter for longer motor cable lengths and for use in different EMC environments
Climatic environmental conditions
Max. 4000 m
Above 1000 m with 1 % derating per 100 m
Main circuit
35 W at 25% current and 50% speed
38 W at 50% current and 0% speed
38 W at 50% current and 50% speed
42 W at 100% current and 0% speed
42 W at 50% current and 90% speed
53 W at 100% current and 50% speed
64 W at 100% current and 90% speed
Sensorless vector control (SLV)
Speed control with slip compensation
Optional: Vector control with feedback (CLV)
230 V AC, 3-phase
240 V AC, 1-phase
Motor rating
Apparent power
Braking function
Max. 30 % MN, Standard - Main circuit
Max. 100 % of rated operational current Ie with external braking resistor - Main circuit
