View larger
Images are for illustrative purposes only. Please refer to data sheet for details

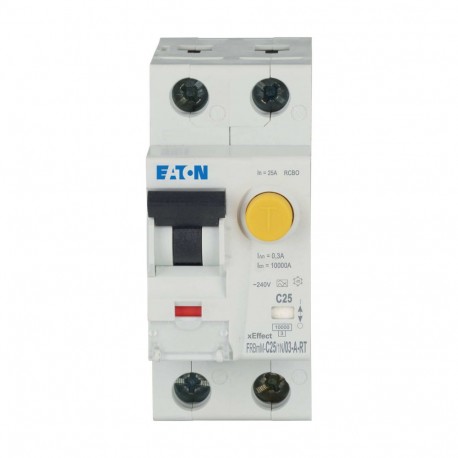

FRBMM-C25/1N/03-A-RT 305188 Y7-305188 EATON ELECTRIC Combined Int. FRBMM, 25A, 300mA, C-Curve, 1P+N, Class A..
FRBMM-C25/1N/03-A-RT
305188
Y7-305188
EATON - MOELLER
1 Pcs.
Combined Int. FRBMM, 25A, 300mA, C-Curve, 1P+N, Class A Terminal
FRBMM-C25/1N/03-A-RT. RCD/MCB, 25A, 300mA, miniature circuit-breaker trip curve: C, 1pole+N, residual current circuit-breaker trip characteristic: A
Automation > Earth leakage circuit breaker
Modular Switchgear – Tertiary and Differential
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
| Product Name | Eaton Moeller series xEffect - FRBmM RCBO - residual-current circuit breaker with overcurrent protection |
| Catalog Number | 305188 |
| Model Code | FRBMM-C25/1N/03-A-RT |
| EAN | 9010238988811 |
| Product Length/Depth | 75.5 mm |
| Product Height | 84.5 mm |
| Product Width | 35.4 mm |
| Product Weight | 0.204 kg |
| Compliances | RoHS conform |
| Certifications | EN45545-2 IEC 61373 |
Delivery program
| Number of poles (protected) | 1 |
| Number of poles (total) | 2 |
| Release characteristic | C |
| Amperage Rating | 32 A |
| Rated current | 25 A |
| Fault current rating | 0.3 A |
Technical Data - Electrical
| Voltage type | AC |
| Rated operational voltage (Ue) - max | 240 V |
| Rated insulation voltage (Ui) | 500 V |
| Rated impulse withstand voltage (Uimp) | 4 kV |
| Frequency rating | 50 Hz |
| Leakage current type | A |
| Rated switching capacity (IEC/EN 60947-2) | 10 kA |
| Rated short-circuit breaking capacity (EN 60947-2) | 10 kA |
| Rated short-circuit breaking capacity (EN 61009) | 10 kA |
| Rated short-circuit breaking capacity (EN 61009-1) | 10 kA |
| Rated short-circuit breaking capacity (IEC 60947-2) | 10 kA |
| Surge current capacity | 0.25 kA |
| Disconnection characteristic | Undelayed |
| Pollution degree | 2 |
Technical Data - Mechanical
| Width in number of modular spacings | 2 |
| Built-in depth | 75.5 mm |
| Mounting Method | DIN rail |
| Degree of protection | IP20 |
| Connectable conductor cross section (solid-core) - min | 1 mm² |
| Connectable conductor cross section (solid-core) - max | 25 mm² |
| Connectable conductor cross section (multi-wired) - min | 1 mm² |
| Connectable conductor cross section (multi-wired) - max | 25 mm² |
Design verification as per IEC/EN 61439 - technical data
| Ambient operating temperature - max | 40 °C |
| Ambient operating temperature - min | -25 °C |
Additional information
| Current limiting class | 3 |
| Feature Name | Feature Value |
|---|---|
| Number of poles (total) (EF008618) | 2 |
| Number of protected poles (EF005548) | 1 |
| Rated voltage (EF000228) | 240 V |
| Rated insulation voltage Ui (EF001366) | 500 V |
| Rated impulse withstand voltage Uimp (EF011980) | 4 kV |
| Rated current (EF000227) | 25 A |
| Rated fault current (EF002358) | 0.3 A |
| Leakage current type (EF002560) | A |
| Current limiting class (EF002568) | 3 |
| Rated short-circuit breaking capacity according to EN 61009 (EF012628) | 10 kA |
| Rated short-circuit breaking capacity according to IEC 60947-2 (EF006065) | 10 kA |
| Rated short-circuit breaking capacity Icn according to EN 61009-1 (EF011981) | 10 kA |
| Disconnection characteristic (EF012587) | Undelayed |
| Surge current capacity (EF002564) | 0.25 kA |
| Voltage type (EF000187) | AC |
| Frequency (EF005455) | 50 Hz |
| Release characteristic (EF000889) | C |
| Concurrently switching neutral conductor (EF005997) | No |
| With interlocking device (EF007385) | No |
| Over voltage category (EF002569) | 3 |
| Pollution degree (EF002570) | 2 |
| Ambient temperature during operating (EF007515) | -25 °C |
| Width in number of modular spacings (EF002950) | 2 |
| Built-in depth (EF000218) | 75.5 mm |
| Anti-nuisance tripping version (EF009497) | No |
| Degree of protection (IP) (EF005474) | IP20 |
| Connectable conductor cross section solid-core (EF007337) | 1 mm² |
| Connectable conductor cross section multi-wired (EF007343) | 1 mm² |
