View larger
Images are for illustrative purposes only. Please refer to data sheet for details

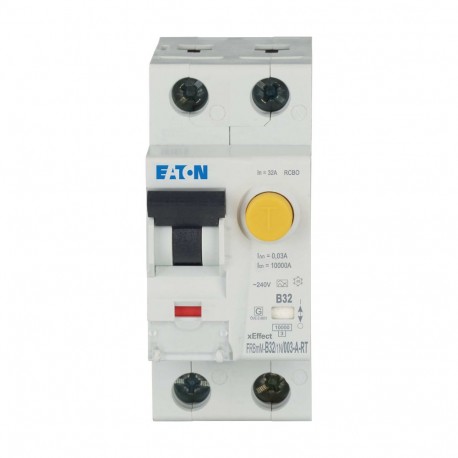

FRBMM-B32/1N/003-A-RT 305124 Y7-305124 EATON ELECTRIC Combined Int. FRBMM, 32A, 30mA, B-Curve, 1P+N, Class A..
FRBMM-B32/1N/003-A-RT
305124
Y7-305124
EATON - MOELLER
1 Pcs.
Combined Int. FRBMM, 32A, 30mA, B-Curve, 1P+N, Class A Ring Terminal
FRBMM-B32/1N/003-A-RT. RCD/MCB, 32A, 30mA, miniature circuit-breaker trip curve: B, 1pole+N, residual current circuit-breaker trip characteristic: A
Automation > Earth leakage circuit breaker
Modular Switchgear – Tertiary and Differential
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton Moeller series xEffect - FRBm6/M RCBO - residual-current circuit breaker with overcurrent protection
Catalog Number
305124
Model Code
FRBMM-B32/1N/003-A-RT
EAN
9010238988613
Product Length/Depth
75.5 mm
Product Height
84.5 mm
Product Width
35.4 mm
Product Weight
0.204 kg
Compliances
RoHS conform
Certifications
EN45545-2
IEC 61373
IEC 61373
Delivery programme
Number of poles (protected)
1
Number of poles (total)
2
Release characteristic
B
Amperage Rating
40 A
Rated current
32 A
Fault current rating
0.03 A
Technical data - electrical
Voltage type
AC
Rated operational voltage (Ue) - max
240 V
Rated insulation voltage (Ui)
500 V
Rated impulse withstand voltage (Uimp)
4 kV
Frequency rating
50 Hz
Leakage current type
A
Rated switching capacity (IEC/EN 60947-2)
10 kA
Rated short-circuit breaking capacity (EN 60947-2)
10 kA
Rated short-circuit breaking capacity (EN 61009)
10 kA
Rated short-circuit breaking capacity (EN 61009-1)
10 kA
Rated short-circuit breaking capacity (IEC 60947-2)
10 kA
Surge current capacity
0.25 kA
Disconnection characteristic
Undelayed
Overvoltage category
III
Pollution degree
2
Technical data - mechanical
Width in number of modular spacings
2
Built-in depth
75.5 mm
Degree of protection
IP20
Connectable conductor cross section (solid-core) - min
1 mm²
Connectable conductor cross section (solid-core) - max
25 mm²
Connectable conductor cross section (multi-wired) - min
1 mm²
Connectable conductor cross section (multi-wired) - max
25 mm²
Design verification as per IEC/EN 61439 - technical data
Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
40 °C
| Feature Name | Feature Value |
|---|---|
| Number of poles (total) (EF008618) | 2 |
| Number of protected poles (EF005548) | 1 |
| Rated voltage (EF000228) | 240 V |
| Rated insulation voltage Ui (EF001366) | 500 V |
| Rated impulse withstand voltage Uimp (EF011980) | 4 kV |
| Rated current (EF000227) | 32 A |
| Rated fault current (EF002358) | 0.03 A |
| Leakage current type (EF002560) | A |
| Current limiting class (EF002568) | 3 |
| Rated short-circuit breaking capacity according to EN 61009 (EF012628) | 10 kA |
| Rated short-circuit breaking capacity according to IEC 60947-2 (EF006065) | 10 kA |
| Rated short-circuit breaking capacity Icn according to EN 61009-1 (EF011981) | 10 kA |
| Disconnection characteristic (EF012587) | Undelayed |
| Surge current capacity (EF002564) | 0.25 kA |
| Voltage type (EF000187) | AC |
| Frequency (EF005455) | 50 Hz |
| Release characteristic (EF000889) | B |
| Concurrently switching neutral conductor (EF005997) | No |
| With interlocking device (EF007385) | No |
| Over voltage category (EF002569) | 3 |
| Pollution degree (EF002570) | 2 |
| Ambient temperature during operating (EF007515) | -25 °C |
| Width in number of modular spacings (EF002950) | 2 |
| Built-in depth (EF000218) | 75.5 mm |
| Anti-nuisance tripping version (EF009497) | No |
| Degree of protection (IP) (EF005474) | IP20 |
| Connectable conductor cross section solid-core (EF007337) | 1 mm² |
| Connectable conductor cross section multi-wired (EF007343) | 1 mm² |
