View larger

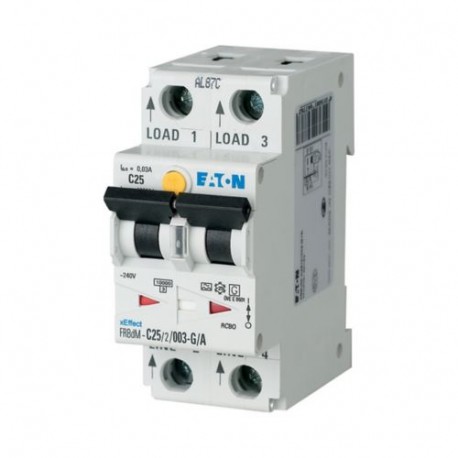

Images are for illustrative purposes only. Please refer to data sheet for details
FRBDM-D25/2/001-G/A 168197 Y7-168197 EATON ELECTRIC RCD/MCB comb. switch, 25A, 10mA, miniature circuit-break..
FRBDM-D25/2/001-G/A
168197
Y7-168197
EATON - MOELLER
1 Pcs.
RCD/MCB comb. switch, 25A, 10mA, miniature circuit-breaker type D trip characteristic, 2p, residual current circuit-breaker trip characteristic: A
FRBDM-D25/2/001-G/A
Eaton Moeller series xEffect - FRBdM RCBO - residual-current circuit breaker with overcurrent protection. RCD/MCB, 25A, 10mA, MCB trip type D, 2p, RCCB trip type: A
Automation > Earth leakage circuit breaker
Modular Switchgear – Industrial
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton Moeller series xEffect - FRBdM RCBO - residual-current circuit breaker with overcurrent protection
Catalog Number
168197
Model Code
FRBDM-D25/2/001-G/A
EAN
4015081647682
Product Length/Depth
86 mm
Product Height
75 mm
Product Width
37 mm
Product Weight
0.25 kg
Compliances
RoHS conform
Certifications
CE
Delivery Program
Basic function
Combined RCD/MCB devices
Number of poles
Two-pole
Tripping
Short time-delayed
Tripping characteristic
D
Application
Switchgear for industrial and advanced commercial applications
Rated switching capacity (IEC/EN 61009)
10 kA
Type
RCBO
Product range
FRBdM
Impulse withstand current
Surge-proof, 3 kA
Technical Data - Electrical
Rated operational voltage (Ue) - max
240 V
Sensitivity type
Pulse-current sensitive
Rated current
25 A
Technical Data
Number of poles (total)
2
Number of poles (protected)
2
Rated impulse withstand voltage (Uimp)
4 kV
Leakage current type
A
Current limiting class
3
Rated short-circuit breaking capacity (EN 61009)
10 kA
Rated short-circuit breaking capacity (EN 61009-1)
10 kA
Rated short-circuit breaking capacity (EN 60947-2)
0 kA
Disconnection characteristic
Short-time delayed
Surge current capacity
3 kA
Voltage type
AC
Release characteristic
D
Overvoltage category
III
Pollution degree
2
