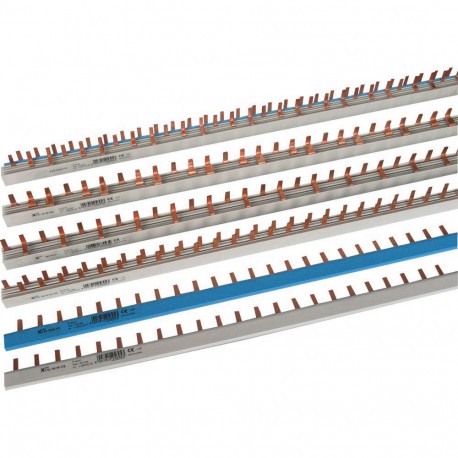

EATON - MOELLER Z-SV-16/2P-2TE Z-SV-16/2P-2TE 264923 Y7-264923 EATON ELECTRIC Phase busbar, 2-phases, 16qmm, pin, 1m View larger
Images are for illustrative purposes only. Please refer to data sheet for details

Z-SV-16/2P-2TE 264923 Y7-264923 EATON ELECTRIC Phase busbar, 2-phases, 16qmm, pin, 1m

Z-SV-16/2P-2TE

264923

Y7-264923

EATON - MOELLER

1 Pcs.

Phase busbar, 2-phases, 16qmm, pin, 1m Z-SV-16/2P-2TE Eaton Distribution parts. Phase busbar, 2-phases, 16qmm, pin, 1m Block busbar for PLN. (1 space units), Z-SI, supplied without end caps

Automation > Phase busbar
Modular Switchgear – Others and Accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A phase busbar such as the Eaton Moeller Z-SV-16/2P-2TE is utilized in electrical switchboards to connect multiple modular devices together and share a common line potential without manual wiring. These conductive bars streamline electrical installations by organizing power feeds neatly across adjacent breakers, contactors, or control modules. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Number of phases (EF000351): 2
  • Number of poles (EF001391): 2
  • Suitable for number of devices (EF007241): 6
  • Module width (EF007504): 17.95 mm
  • Cross section (EF000649): 16 mm²
  • Length (EF001438): 29.5 mm
  • Can be cut to size (EF015250): Yes
  • Width in number of modular spacings (EF002950): 2
  • Rated permanent current Iu (EF001389): 63 A
  • Type of electric connection (EF003961): Pin
  • Insulated (EF000019): Yes
  • Rated surge voltage (EF002993): 0 kV
  • Conditioned rated short-circuit current Iq (EF001444): 25 kA
  • Max. rated operation voltage Ue (EF007357): 415 V
  • Rated short-time withstand current lcw (EF007050): 0 kA
  • Suitable for devices with N-conductor (EF007218): Yes

More info

▲

General specifications

Product Name
Eaton Distribution parts
Catalog Number
264923
Model Code
Z-SV-16/2P-2TE
EAN
4015082649234
Product Length/Depth
29.5 mm
Product Height
16.2 mm
Product Width
1020 mm
Product Weight
0.485 kg
Compliances
RoHS conform

Product specifications

Features
Insulated
Can be cut to size
Electric connection type
Pin
Rated surge voltage
0 KV
Rated uninterrupted current (Iu)
63 A
Suitable for number of devices
6
Number of poles
Two-pole
Color
Other
Rated short-time withstand current (Icw)
0 kA
Cross section
16 mm²
Number of modular spacings
2
Number of phases
2
Pitch dimensions
17.95 mm
Rated operational voltage (Ue) - max
415 V
Rated conditional short-circuit current (Iq)
25 kA
Suitable for
Devices with N-busbar
28 devices

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
