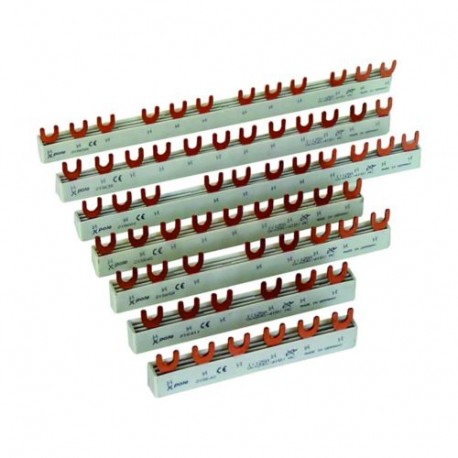

EATON - MOELLER EVG-4PHAS/12MODUL EVG-4PHAS/12MODUL 215643 Y7-215643 EATON ELECTRIC Phase busbar, 4-phases, 10qmm, fork connector, 12SU View larger
Images are for illustrative purposes only. Please refer to data sheet for details

EVG-4PHAS/12MODUL 215643 Y7-215643 EATON ELECTRIC Phase busbar, 4-phases, 10qmm, fork connector, 12SU

EVG-4PHAS/12MODUL

215643

Y7-215643

EATON - MOELLER

10 Pcs.

Phase busbar, 4-phases, 10qmm, fork connector, 12SU EVG-4PHAS/12MODUL Eaton Moeller series xPole - Busbar. Phase busbar, 4-phases, 10qmm, fork connector, 12SU Euro Vario busbar for PLS.CLS.PKN.PFIM, PFHM, PFNM, no end caps required

Automation > Phase busbar
Modular Switchgear – Others and Accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Moeller series busbar
Catalog Number
215643
Model Code
EVG-4PHAS/12MODUL
EAN
9010238140325
Product Length/Depth
210 mm
Product Height
30 mm
Product Width
10 mm
Product Weight
0.095 kg
Compliances
RoHS conform

Product specifications

Type
Features
Insulated
Accessory/spare part type
Busbar for residual current circuit breakers
Busbar for miniature circuit breaker
Busbar for combined residual current/power circuit breaker
Electric connection type
Fork
Used with
Busbar
EVG
Rated surge voltage
4 KV
Rated uninterrupted current (Iu)
63 A
Suitable for number of devices
3
Number of poles
Four-pole
Color
Other
Rated short-time withstand current (Icw)
0 kA
Cross section
10 mm²
Number of modular spacings
12
Number of phases
4
Pitch dimensions
0 mm
Rated operational voltage (Ue) - max
500 V
Rated conditional short-circuit current (Iq)
25 kA
Functions
Busbar
Suitable for
Devices with N-busbar
3 devices

ETIM for 215643 Low-voltage industrial controls and switchgear (EC000215)
Feature Name Feature Value
Number of phases (EF000351) 4
Number of poles (EF001391) 4
Suitable for number of devices (EF007241) 3
Module width (EF007504) 0 mm
Cross section (EF000649) 10 mm²
Length (EF001438) 210 mm
Can be cut to size (EF015250) No
Width in number of modular spacings (EF002950) 12
Rated permanent current Iu (EF001389) 63 A
Type of electric connection (EF003961) Fork
Insulated (EF000019) Yes
Rated surge voltage (EF002993) 4 kV
Conditioned rated short-circuit current Iq (EF001444) 25 kA
Max. rated operation voltage Ue (EF007357) 500 V
Rated short-time withstand current lcw (EF007050) 0 kA
Suitable for devices with N-conductor (EF007218) Yes
Suitable for devices with auxiliary switch (EF007217) No
Colour (EF000007) Other

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
