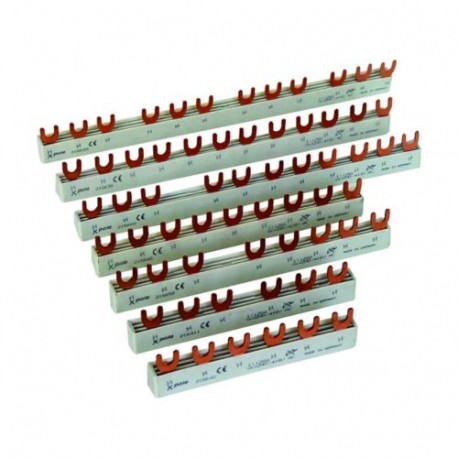

EATON - MOELLER EVG-1PHAS/12MODUL EVG-1PHAS/12MODUL 215637 Y7-215637 EATON ELECTRIC Phase busbar, 1-phase, 10qmm, fork connector, 12SU View larger
Images are for illustrative purposes only. Please refer to data sheet for details

EVG-1PHAS/12MODUL 215637 Y7-215637 EATON ELECTRIC Phase busbar, 1-phase, 10qmm, fork connector, 12SU

EVG-1PHAS/12MODUL

215637

Y7-215637

EATON - MOELLER

40 Pcs.

Phase busbar, 1-phase, 10qmm, fork connector, 12SU EVG-1PHAS/12MODUL Eaton Moeller series xPole - Busbar. Phase busbar, 1-phase, 10qmm, fork connector, 12SU Euro Vario busbar for PLS.CLS.PKN.PFIM, PFHM, PFNM, no end caps required

Automation > Phase busbar
Modular Switchgear – Others and Accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Eaton Moeller EVG-1PHAS/12MODUL phase busbar is an electrical distribution component used to bridge power efficiently across multiple modular DIN rail devices in a control panel. Busbars eliminate cumbersome jumper wires by providing a solid, insulated copper pathway that distributes incoming supply voltage cleanly across adjacent circuit breakers or auxiliary units. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Number of phases (EF000351): 1
  • Number of poles (EF001391): 1
  • Suitable for number of devices (EF007241): 12
  • Module width (EF007504): 0 mm
  • Cross section (EF000649): 10 mm²
  • Length (EF001438): 210 mm
  • Can be cut to size (EF015250): No
  • Width in number of modular spacings (EF002950): 12
  • Rated permanent current Iu (EF001389): 63 A
  • Type of electric connection (EF003961): Fork
  • Insulated (EF000019): Yes
  • Rated surge voltage (EF002993): 4 kV
  • Conditioned rated short-circuit current Iq (EF001444): 25 kA
  • Max. rated operation voltage Ue (EF007357): 500 V
  • Rated short-time withstand current lcw (EF007050): 0 kA
  • Suitable for devices with N-conductor (EF007218): No

More info

▲

General specifications

Product Name
Eaton Moeller series busbar
Catalog Number
215637
Model Code
EVG-1PHAS/12MODUL
EAN
4015082156374
Product Length/Depth
210 mm
Product Height
30 mm
Product Width
7 mm
Product Weight
0.051 kg
Compliances
RoHS conform
Certifications
CE

Product specifications

Type
Features
Insulated
Accessory/spare part type
Busbar for combined residual current/power circuit breaker
Busbar for miniature circuit breaker
Busbar for residual current circuit breakers
Electric connection type
Fork
Used with
EVG
Busbar
Rated surge voltage
4 KV
Rated uninterrupted current (Iu)
63 A
Suitable for number of devices
12
Number of poles
Single-pole
Color
Other
Rated short-time withstand current (Icw)
0 kA
Cross section
10 mm²
Number of modular spacings
12
Number of phases
1
Pitch dimensions
0 mm
Rated operational voltage (Ue) - max
500 V
Rated conditional short-circuit current (Iq)
25 kA
Functions
Busbar
Suitable for
12 devices
