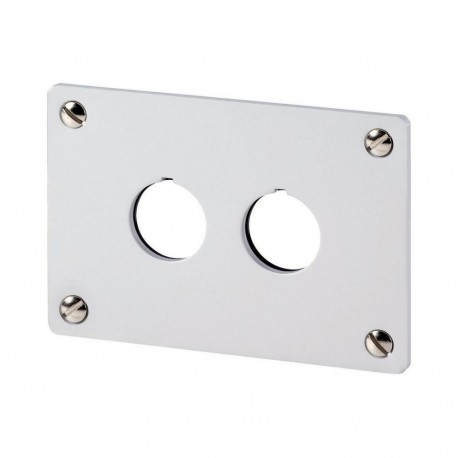

M22-E2 216543 Y7-216543 EATON ELECTRIC Flush mounting plate, 2 mounting locations
M22-E2
216543
Y7-216543
EATON - MOELLER
5 Pcs.
Flush mounting plate, 2 mounting locations
M22-E2
Eaton Moeller® series M22 Flush mounting plate, 2 mounting locations
Flush mounting plate, Number of locations: 2, Degree of Protection: IP65, Color grey, Color RAL Value: RAL 7035, Connection to SmartWire-DT: no, No legend plates possible with vertical arrangements, Degree of protection only in conjunction with a suitable enclosure and correct mounting., Aluminum light anodized, including M22-XE...
Automation > Built-in panel for command devices
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Eaton Moeller flush mounting plate, 2 mounting locations M22-E2 provides a stable aluminum surface for housing operator elements, pilot lights, and control switches on industrial machinery and control panels. Flush mounting enclosures and plates organize operator interfaces while protecting internal wiring from harsh environmental factors. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Width (EF000008): 105 mm
- Height (EF000040): 72 mm
- Material (EF002169): Aluminium
- Number of command positions (EF001372): 2
- Diameter openings (EF000243): 22 mm
- Colour (EF000007): Grey
- Degree of protection (IP) (EF005474): IP65
- Degree of protection (NEMA) (EF011959): 4X, 13
More info
▲General specifications
Product Name
Eaton Moeller® series M22 Accessory Flush mounting plate
Catalog Number
216543
Model Code
M22-E2
EAN
4015082165437
Product Length/Depth
3 mm
Product Height
72 mm
Product Width
105 mm
Product Weight
0.076 kg
Compliances
CE Marked
Certifications
EN 60947-5
IEC 60947-5
CSA Std. C22.2 No. 14-05
CSA Std. C22.2 No. 94-91
UL 508
VDE
CSA
CSA File No.: 012528
CSA-C22.2 No. 14-05
UL File No.: E29184
CE
CSA Class No.: 3211-03
UL Category Control No.: NKCR
CSA-C22.2 No. 94-91
IEC/EN 60947-5
UL
IEC 60947-5
CSA Std. C22.2 No. 14-05
CSA Std. C22.2 No. 94-91
UL 508
VDE
CSA
CSA File No.: 012528
CSA-C22.2 No. 14-05
UL File No.: E29184
CE
CSA Class No.: 3211-03
UL Category Control No.: NKCR
CSA-C22.2 No. 94-91
IEC/EN 60947-5
UL
Features & Functions
Color
Gray
Material
Aluminum
Number of locations
2
RAL-number
7035
General
Degree of protection
IP65
Only in conjunction with a suitable enclosure and correct mounting
NEMA 4X, 13
Only in conjunction with a suitable enclosure and correct mounting
NEMA 4X, 13
Opening diameter
22 mm
Type
Surface mounting enclosure
Climatic environmental conditions
Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
70 °C
Communication
Connection to SmartWire-DT
No
Contacts
Force for positive opening - min
0 N
Design verification
Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Please enquire
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
Not applicable.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
