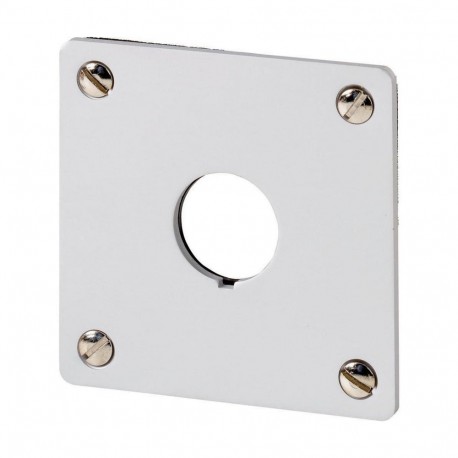

EATON - MOELLER M22-E1 M22-E1 216541 Y7-216541 EATON ELECTRIC Flush mounting plate, 1 mounting location View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22-E1 216541 Y7-216541 EATON ELECTRIC Flush mounting plate, 1 mounting location

M22-E1

216541

Y7-216541

EATON - MOELLER

5 Pcs.

Flush mounting plate, 1 mounting location M22-E1 Eaton Moeller® series M22 Flush mounting plate, 1 mounting location Flush mounting plate, Number of locations: 1, Degree of Protection: IP65, Color grey, Color RAL Value: RAL 7035, Connection to SmartWire-DT: no, No legend plates possible with vertical arrangements, Degree of protection only in conjunction with a suitable enclosure and correct mounting., Aluminum light anodized, including M22-XE...

Automation > Built-in panel for command devices
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Eaton Moeller M22-E1 Flush mounting plate is a robust aluminum enclosure component configured with a single operator cutout for surface-mounting 22 mm control devices. This plate provides IP65 protection for pushbuttons and selector switches deployed in industrial machinery exposed to dust and moisture.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Width (EF000008): 72 mm
  • Height (EF000040): 72 mm
  • Material (EF002169): Aluminium
  • Number of command positions (EF001372): 1
  • Diameter openings (EF000243): 22 mm
  • Colour (EF000007): Grey
  • Degree of protection (IP) (EF005474): IP65
  • Degree of protection (NEMA) (EF011959): 4X, 13

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Accessory Flush mounting plate
Catalog Number
216541
Model Code
M22-E1
EAN
4015082165413
Product Length/Depth
3 mm
Product Height
72 mm
Product Width
72 mm
Product Weight
0.054 kg
Compliances
CE Marked
Certifications
IEC 60947-5
CSA Std. C22.2 No. 94-91
CSA Std. C22.2 No. 14-05
UL 508
EN 60947-5
VDE
CSA-C22.2 No. 14-05
CSA File No.: 012528
CE
UL File No.: E29184
CSA
CSA-C22.2 No. 94-91
UL
IEC/EN 60947-5
UL Category Control No.: NKCR
CSA Class No.: 3211-03
