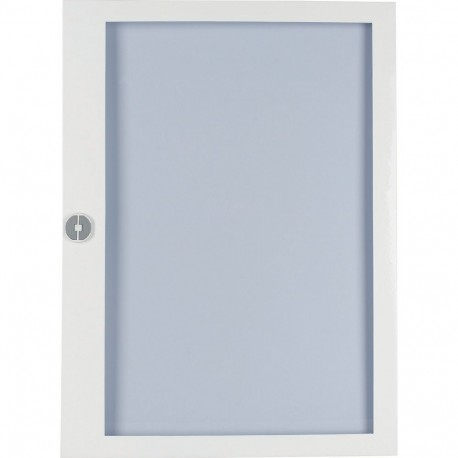

EATON - MOELLER BFZ-UTT-DR-3/72 BFZ-UTT-DR-3/72 285228 Y7-285228 EATON ELECTRIC Flush mounted steel sheet door white, transparent with Profi.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

BFZ-UTT-DR-3/72 285228 Y7-285228 EATON ELECTRIC Flush mounted steel sheet door white, transparent with Profi..

BFZ-UTT-DR-3/72

285228

Y7-285228

EATON - MOELLER

1 Pcs.

Flush mounted steel sheet door white, transparent with Profi Line handle for 24MU per row, 3 rows BFZ-UTT-DR-3/72 Sheet steel door with transparent panel and Profi cam lock for flush-mounted enclosures, polyester powder-spray painted, white RAL 9016, 24 space units per row, 3 rows

Automation > Door/operating panel (switchgear cabinet)
Compact Distribution Boxes

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Flush mounted steel sheet door white, transparent with Profi Line handle for 24MU per row, 3 rows
Sheet steel door with transparent panel and Profi cam lock for flush-mounted enclosures, polyester powder-spray painted, white RAL 9016, 24 space units per row, 3 rows

General specifications
Product name
Eaton xComfort BF door
Part no.
BFZ-UTT-DR-3/72
EAN
4015082852283
Product Length/Depth
35 millimetre
Product height
1175 millimetre
Product width
550 millimetre
Product weight
2.05 kilogram
Compliances
RoHS conform
Product Tradename
xComfort BF
Product Type
Accessories
Product Sub Type
Door
Delivery program
Type
Additional equipment for BF flat distribution board
Model
Partial door
Accessory/spare part type
BF
Color
White
Technical Data - Mechanical
Surface finishing
Powder coating
Material
Steel
Degree of protection
IP30
Other
Additional information
Features
EMC-version
Version as glazed door
Functions
Additional equipment
Used with
Doors, sheet steel, transparent, with rotary lock
BF flat distribution board
Accessory consideration

Technical data ETIM 9.0

Cabinet enclosures (EG000011) / Door/operating panel (enclosure/cabinet) (EC000747)
Electric engineering, automation, process control engineering / Electrical cabinet, housing, rack / Door (electrical cabinet) / Door/operating panel (enclosure) (ecl@ss13-27-18-22-04 [ACN614016])
Model
Partial door
Version as glazed door
Yes
Version as door for disconnecting switch interlocking
No
Width
550 mm
Height
1175 mm
Depth
35 mm
EMC-version
Yes
Material
Steel
Surface finishing
Powder coating
Colour
White
Degree of protection (IP)
IP30
Degree of protection (NEMA)
Other

ETIM for 285228 Cabinets and enclosures (EC000747)
Feature Name Feature Value
Model (EF000010) Partial door
Version as glazed door (EF006966) Yes
Version as door for disconnecting switch interlocking (EF006967) No
Width (EF000008) 550 mm
Height (EF000040) 1175 mm
Depth (EF000049) 35 mm
EMC-version (EF001062) Yes
Material (EF002169) Steel
Surface finishing (EF006569) Powder coated
Colour (EF000007) White
Degree of protection (IP) (EF005474) IP30
Degree of protection (NEMA) (EF011959) Other
