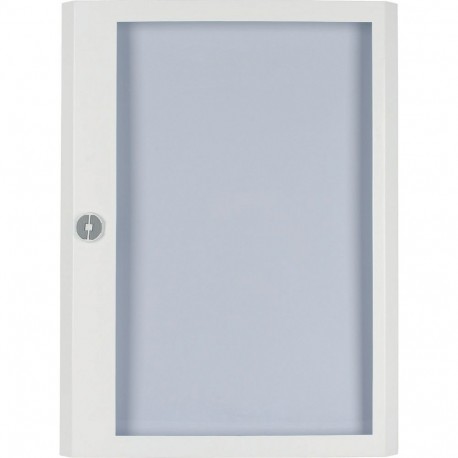

EATON - MOELLER BFZ-OTT-DR-6/144 BFZ-OTT-DR-6/144 285226 Y7-285226 EATON ELECTRIC Surface mounted steel sheet door white, transparent with Pr.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

BFZ-OTT-DR-6/144 285226 Y7-285226 EATON ELECTRIC Surface mounted steel sheet door white, transparent with Pr..

BFZ-OTT-DR-6/144

285226

Y7-285226

EATON - MOELLER

1 Pcs.

Surface mounted steel sheet door white, transparent with Profi Line handle for 24MU per row, 6 rows BFZ-OTT-DR-6/144 Sheet steel door with transparent panel and Profi cam lock for surface-mounted enclosures, polyester powder-spray painted, white RAL 9016, 24 space units per row, 6 rows

Automation > Door/operating panel (switchgear cabinet)
Compact Distribution Boxes

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Featuring a transparent viewing insert, this Eaton Moeller BFZ-OTT-DR-6/144 surface-mounted partial door allows operators to inspect internal instrumentation and indicators without breaking the enclosure seal. Glazed doors are widely implemented on control cabinets where frequent status checks are required while maintaining environmental protection. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): Partial door
  • Version as glazed door (EF006966): Yes
  • Width (EF000008): 550 mm
  • Height (EF000040): 1175 mm
  • Depth (EF000049): 35 mm
  • EMC-version (EF001062): Yes
  • Material (EF002169): Steel
  • Surface finishing (EF006569): Powder coated
  • Colour (EF000007): White

More info

▲
Surface mounted steel sheet door white, transparent with Profi Line handle for 24MU per row, 6 rows
Sheet steel door with transparent panel and Profi cam lock for surface-mounted enclosures, polyester powder-spray painted, white RAL 9016, 24 space units per row, 6 rows

General specifications
Product name
Eaton xComfort BF door
Part no.
BFZ-OTT-DR-6/144
EAN
4015082852269
Product Length/Depth
35 millimetre
Product height
1175 millimetre
Product width
550 millimetre
Product weight
3.33 kilogram
Compliances
RoHS conform
Product Tradename
xComfort BF
Product Type
Accessories
Product Sub Type
Door
Delivery program
Type
Additional equipment for BF flat distribution board
Model
Partial door
Accessory/spare part type
BF
Color
White
Technical Data - Mechanical
Surface finishing
Powder coating
Material
Steel
Degree of protection
Other
IP30
Additional information
Features
EMC-version
Version as glazed door
Functions
Additional equipment
Used with
Doors, sheet steel, transparent
Accessory consideration
BF flat distribution board

Technical data ETIM 9.0

Cabinet enclosures (EG000011) / Door/operating panel (enclosure/cabinet) (EC000747)
Electric engineering, automation, process control engineering / Electrical cabinet, housing, rack / Door (electrical cabinet) / Door/operating panel (enclosure) (ecl@ss13-27-18-22-04 [ACN614016])
Model
Partial door
Version as glazed door
Yes
Version as door for disconnecting switch interlocking
No
Width
550 mm
Height
1175 mm
Depth
35 mm
EMC-version
Yes
Material
Steel
Surface finishing
Powder coating
Colour
White
Degree of protection (IP)
Other
Degree of protection (NEMA)
Other
