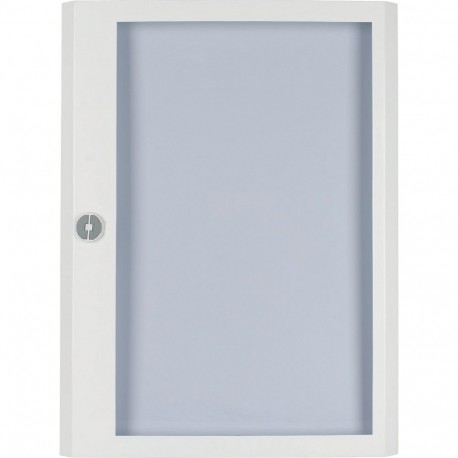

EATON - MOELLER BFZ-OTT-DR-5/120 BFZ-OTT-DR-5/120 285225 Y7-285225 EATON ELECTRIC Surface mounted steel sheet door white, transparent with Pr.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

BFZ-OTT-DR-5/120 285225 Y7-285225 EATON ELECTRIC Surface mounted steel sheet door white, transparent with Pr..

BFZ-OTT-DR-5/120

285225

Y7-285225

EATON - MOELLER

1 Pcs.

Surface mounted steel sheet door white, transparent with Profi Line handle for 24MU per row, 5 rows BFZ-OTT-DR-5/120 Eaton xComfort BF LV systems Final Distribution Boards. Surface mounted steel sheet door white, transparent with Profi Line handle for 24MU per row, 5 rows Sheet steel door with transparent panel and Profi cam lock for surface-mounted enclosures, polyester powder-spray painted, white RAL 9016, 24 space units per row, 5 rows

Automation > Door/operating panel (switchgear cabinet)
Compact Distribution Boxes

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller surface-mounted steel sheet partial door (BFZ-OTT-DR-5/120) incorporates a transparent glazed section to allow quick visual checks of internal modular devices while maintaining a secure barrier. Glazed partial doors are frequently used in building distribution boards to monitor metering and control equipment.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): Partial door
  • Version as glazed door (EF006966): Yes
  • Width (EF000008): 550 mm
  • Height (EF000040): 875 mm
  • Depth (EF000049): 35 mm
  • EMC-version (EF001062): Yes
  • Material (EF002169): Steel
  • Surface finishing (EF006569): Powder coated
  • Colour (EF000007): White
  • Degree of protection (IP) (EF005474): IP30

More info

▲

General specifications

Product Name
Eaton xComfort BF door
Catalog Number
285225
Model Code
BFZ-OTT-DR-5/120
EAN
4015082852252
Product Length/Depth
35 mm
Product Height
875 mm
Product Width
550 mm
Product Weight
2.9 kg
Compliances
RoHS conform

Delivery program

Type
Additional equipment for BF flat distribution board
Model
Partial door
Accessory/spare part type
BF
Color
White

Technical data - mechanical

Surface finishing
Powder coating
Material
Steel
Degree of protection
IP30
Other

Additional information

Features
EMC-version
Version as glazed door
Functions
Additional equipment
Used with
Doors, sheet steel, transparent
BF flat distribution board
Accessory consideration

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
