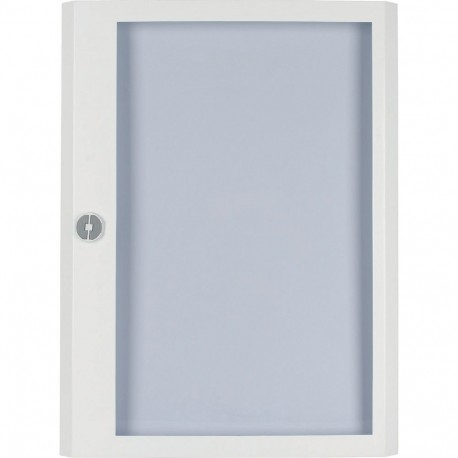

EATON - MOELLER BFZ-OTT-DR-2/48 BFZ-OTT-DR-2/48 285222 Y7-285222 EATON ELECTRIC Surface mounted steel sheet door white, transparent with Pro.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

BFZ-OTT-DR-2/48 285222 Y7-285222 EATON ELECTRIC Surface mounted steel sheet door white, transparent with Pro..

BFZ-OTT-DR-2/48

285222

Y7-285222

EATON - MOELLER

1 Pcs.

Surface mounted steel sheet door white, transparent with Profi Line handle for 24MU per row, 2 rows BFZ-OTT-DR-2/48 Eaton xComfort BF LV systems Final Distribution Boards. Surface mounted steel sheet door white, transparent with Profi Line handle for 24MU per row, 2 rows Sheet steel door with transparent panel and Profi cam lock for surface-mounted enclosures, polyester powder-spray painted, white RAL 9016, 24 space units per row, 2 rows

Automation > Door/operating panel (switchgear cabinet)
Compact Distribution Boxes

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton xComfort BF door
Catalog Number
285222
Model Code
BFZ-OTT-DR-2/48
EAN
4015082852221
Product Length/Depth
35 mm
Product Height
425 mm
Product Width
550 mm
Product Weight
1.6 kg
Compliances
RoHS conform

Delivery program

Type
Additional equipment for BF flat distribution board
Model
Partial door
Accessory/spare part type
BF
Color
White

Technical data - mechanical

Surface finishing
Powder coating
Material
Steel
Degree of protection
IP30
Other

Additional information

Features
Version as glazed door
EMC-version
Functions
Additional equipment
Used with
Doors, sheet steel, transparent
Accessory consideration
BF flat distribution board

ETIM for 285222 Cabinets and enclosures (EC000747)
Feature Name Feature Value
Model (EF000010) Partial door
Version as glazed door (EF006966) Yes
Version as door for disconnecting switch interlocking (EF006967) No
Width (EF000008) 550 mm
Height (EF000040) 425 mm
Depth (EF000049) 35 mm
EMC-version (EF001062) Yes
Material (EF002169) Steel
Surface finishing (EF006569) Powder coated
Colour (EF000007) White
Degree of protection (IP) (EF005474) IP30
Degree of protection (NEMA) (EF011959) Other
