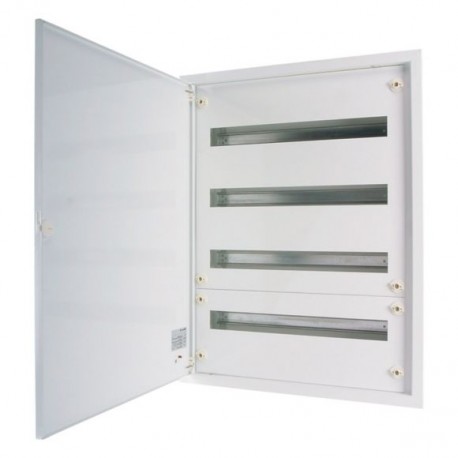

BF-U-4/96-E 283054 Y7-283054 EATON ELECTRIC Complete flush-mounted flat distribution board, white, 24 SU per..
BF-U-4/96-E
283054
Y7-283054
EATON - MOELLER
1 Pcs.
Automation > Small distribution board
Compact Distribution Boxes
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Eaton Moeller part number BF-U-4/96-E is a complete flush-mounted flat distribution board built for seamless integration into wall recesses while accommodating extensive rows of modular switchgear. Recessed distribution boards are standard in building automation and electrical distribution networks to maintain clean architectural lines while safeguarding internal circuit breakers.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Mounting method (EF000003): Flush mounted
- Number of rows (EF000266): 4
- Width in number of modular spacings (EF002950): 24
- Type of covering (EF000339): Door
- Cover model (EF009212): Closed
- Type of door (EF004464): EV000426
- Transparent cover/door (EF006244): No
- Signal passing door (EF015941): No
- With lock (EF006306): No
- Housing material (EF001596): Steel
- Built-in depth (EF000218): 127 mm
- Built-in height (EF000332): 720 mm
- Built-in width (EF000846): 560 mm
- Inner depth (EF001131): 127 mm
- Earthing terminal block (EF015776): Yes
- Neutral terminal block (EF015777): Yes
More info
▲General specifications
IEC/EN 61439-3
IEC/EN 62208
Delivery program
Traffic white (RAL 9016)
Technical data - electrical
Technical data - mechanical
Flush mounting
Flush mounted (plaster)
DIN-rail
Hollow wall
IP30
PE: 2 x 25 mm² + 27 x 16 mm²
Single
Temperature-rise verification as per IEC 60890
Design verification as per IEC/EN 61439 - technical data
Design verification as per IEC/EN 61439
Additional information
Earthing terminal block
Neutral terminal block
Front plates
Wall trough with door frame
Door with Profi-Line three-point turn-lock
Neutral-/protective conductor terminal
Basic device
BF flat distribution board
