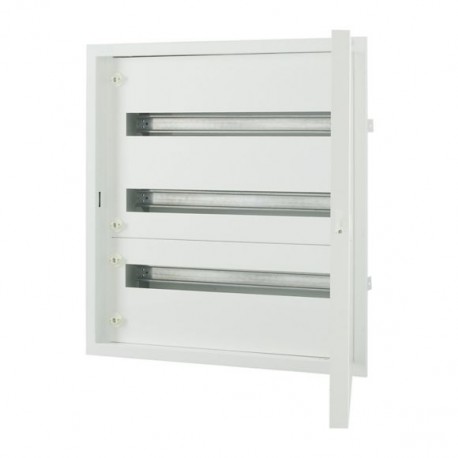

BF-U-3/72-E 283053 Y7-283053 EATON ELECTRIC Complete flush-mounted flat distribution board, white, 24 SU per..
BF-U-3/72-E
283053
Y7-283053
EATON - MOELLER
1 Pcs.
Automation > Small distribution board
Compact Distribution Boxes
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The Eaton Moeller BF-U-3/72-E is a complete flush-mounted flat distribution board engineered to organize and house modular circuit protection devices inside commercial or residential structures. Enclosures of this style provide safe mechanical mounting and centralized connection points for multi-row electrical distribution layouts.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Mounting method (EF000003): Flush mounted
- Number of rows (EF000266): 3
- Width in number of modular spacings (EF002950): 24
- Type of covering (EF000339): Door
- Cover model (EF009212): Closed
- Type of door (EF004464): EV000426
- Transparent cover/door (EF006244): No
- Signal passing door (EF015941): No
- With lock (EF006306): No
- Housing material (EF001596): Steel
- Built-in depth (EF000218): 127 mm
- Built-in height (EF000332): 570 mm
- Built-in width (EF000846): 560 mm
- Inner depth (EF001131): 127 mm
- Earthing terminal block (EF015776): Yes
- Neutral terminal block (EF015777): Yes
More info
▲General specifications
IEC/EN 61439-1
IEC/EN 62208
Delivery program
White
Technical data - electrical
Technical data - mechanical
Hollow wall
Flush mounting
DIN-rail
Hollow-wall mounting and flush mounting
IK07 (impact resistance)
PE: 2 x 25 mm² + 13 x 16 mm²
Single
Temperature-rise verification as per IEC 60890
Design verification as per IEC/EN 61439 - technical data
Design verification as per IEC/EN 61439
Additional information
Earthing terminal block
Neutral terminal block
Neutral-/protective conductor terminal
Front plates
Wall trough with door frame
DIN rail mounting frame
Installation distribution board
BF flat distribution board
