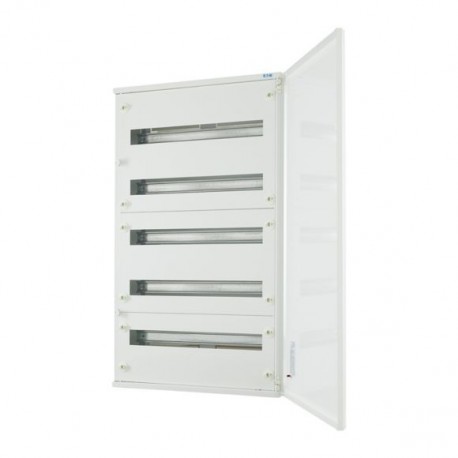

Complete surface-mounted flat distribution board, white, 24 SU per row, 5 rows, type E BF-O-5/120-E Eaton xComfort BF LV systems Final Distribution Boards. Complete surface-mounted flat distribution board, white, 24 SU per row, 5 rows, type E Complete BF-O-./..-E surface-mounted slim distribution board, white RAL 9016, 24 space units per row, 5 rows, height 900mm, width 543 mm, depth 140 mm, includes door with Profi line cam lock, front plates, DIN-rail mounting frame and neutral/PE terminals. Enclosure: closed design, including back plate, back plate can be used as a fixing plane, 2 cable gland plate inserts for slim distribution boards with a width of 24 space units, top, knockout cable entry openings on the bottom, terminals pre-assembled on enclosure (no loss of space units). Wall trough with door frame, back plate can be used as a fixing plane , cable entry openings that are easy to knock out, 127 mm depth, terminals pre-assembled on enclosure (no loss of space units), 4 side fixing brackets. Sheet steel door with cam lock included as standard, sheet steel door with expanded depth (required, for example, in order to install RMQ components in the door) (BFZ-OTR-./...) or sheet steel door with transparent panel (BFZ-OTT-./...) is available as an accessory. Removable DIN-rail mounting frame, for 45 mm modular installation devices, 150 mm DIN busbar distance, Eaton circuit-breakers can be integrated with installation kit , a universal mounting plate can be installed using an installation kit for surface-mounted enclosures (BFZ-O-ITMPL..). electrical contact for metal front plate achieved with special lock on enclosure

Automation > Small distribution board
Compact Distribution Boxes

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Eaton Moeller complete surface-mounted flat distribution board, part number BF-O-5/120-E 283043, provides a streamlined enclosure for modular switching and control devices. Surface-mounted flat distribution units offer easy access and robust physical protection for electrical installations.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Mounting method (EF000003): Surface mounted
  • Number of rows (EF000266): 5
  • Width in number of modular spacings (EF002950): 24
  • Type of covering (EF000339): Door
  • Cover model (EF009212): Closed
  • Type of door (EF004464): EV000426
  • Transparent cover/door (EF006244): No
  • Signal passing door (EF015941): No
  • With lock (EF006306): No
  • Housing material (EF001596): Steel
  • Built-in depth (EF000218): 150 mm
  • Built-in height (EF000332): 910 mm
  • Built-in width (EF000846): 555 mm
  • Inner depth (EF001131): 131 mm
  • Earthing terminal block (EF015776): Yes
  • Neutral terminal block (EF015777): Yes

More info

▲

General specifications

Product Name
Eaton xComfort BF small distribution board
Catalog Number
283043
Model Code
BF-O-5/120-E
EAN
4015082830434
Product Length/Depth
150 mm
Product Height
910 mm
Product Width
555 mm
Product Weight
14.2 kg
Compliances
RoHS conform
Certifications
IEC/EN 61439-3
IEC/EN 61439-1
IEC/EN 62208

Delivery program

Type
Basic deviceBF flat DBOInstallation distribution boards
Application
Indoor (installation site)
Color
Traffic white (RAL 9016)
White

Technical data - electrical

Voltage rating at AC
415 V AC
Frequency rating of contacts
50 Hz / 60 Hz

Technical data - mechanical

Closure type
Other
Enclosure material
Steel
Width in number of modular spacings
24
Mounting method
Surface mounted (plaster)
Surface mounting
DIN-rail
Material
Sheet steel, powder-coated
Degree of protection
IK07 (impact resistance)
IP30
Number of module space units per row
24
Number of rows
5
Terminal type
Screw terminals
PE and N terminal number and cross section
N: 2 x 25 mm² + 27 x 16 mm²
PE: 2 x 25 mm² + 27 x 16 mm²
Built-in depth
150 mm
Built-in height
910 mm
Built-in width
555 mm
Internal depth
131 mm
Cable entry postion
Cable entries on top and bottom
Cover/door color
White
Cover/door model
Closed
Cover/door type
Door
Single
Module rack type
Rail frame
Protective shrouding material
Metal

Temperature-rise verification as per IEC 60890

Heat diss. ambient 35°C delta T: 20°C wall mount middle encl. top (IEC 60890)
53 W
Heat diss. ambient 35°C delta T: 35°C wall mount middle encl. top (IEC 60890)
107 W
Heat diss. ambient 35°C delta T:20°C wall mount individ. encl. top (IEC 60890)
59 W
Heat diss. ambient 35°C delta T:20°C wall mount starting encl. top (IEC 60890)
56 W
Heat diss. ambient 35°C delta T:35°C wall mount individ. encl. top (IEC 60890)
118 W
Heat diss. ambient 35°C delta T:35°C wall mount starting encl. top (IEC 60890)
112 W

Design verification as per IEC/EN 61439 - technical data

Ambient operating temperature details
-5 °C - 40 °C

Design verification as per IEC/EN 61439

10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Not relevant to indoor installations.
10.2.5 Lifting
Does not apply to enclosures without lifting aids.
10.2.6 Mechanical impact
IK07
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
IP30
10.4 Clearances and creepage distances
Is the panel builder's responsibility.
10.5 Protection against electric shock
< 0.1 Ω; meets the product standard's requirements.
10.6 Incorporation of switching devices and components
Is the panel builder's responsibility.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Ui = 415 V AC
10.9.3 Impulse withstand voltage
Does not apply to basic enclosures as defined in EN 62208.
10.9.4 Testing of enclosures made of insulating material
Does not apply to metal enclosures.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility.
10.13 Mechanical function
Meets the product standard's requirements.

Additional information

Features
EMC-version
Earthing terminal block
Neutral terminal block
Fitted with:
Neutral-/protective conductor terminal
DIN rail mounting frame
Enclosure
Front plates
Cable gland plate inserts (top)
Door with Profi-Line three-point turn-lock
Functions
Basic device
Protection class
I (earthed)
RAL-number
9016
Special features
IP30Protection Class ISteel sheet enclosure white (RAL 9016)
Used with
BF flat distribution board
Basic device
Installation distribution board

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
