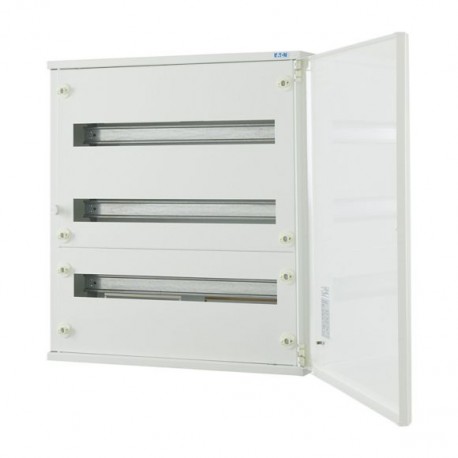

EATON - MOELLER BF-O-3/72-E BF-O-3/72-E 283041 Y7-283041 EATON ELECTRIC Complete surface-mounted flat distribution board, white, 24 SU p.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

BF-O-3/72-E 283041 Y7-283041 EATON ELECTRIC Complete surface-mounted flat distribution board, white, 24 SU p..

BF-O-3/72-E

283041

Y7-283041

EATON - MOELLER

1 Pcs.

Complete surface-mounted flat distribution board, white, 24 SU per row, 3 rows, type E BF-O-3/72-E Eaton xComfort BF LV systems Final Distribution Boards. Complete surface-mounted flat distribution board, white, 24 SU per row, 3 rows, type E Complete BF-O-./..-E surface-mounted slim distribution board, white RAL 9016, 24 space units per row, 3 rows, height 600mm, width 543 mm, depth 140 mm, includes door with Profi line cam lock, front plates, DIN-rail mounting frame and neutral/PE terminals. Enclosure: closed design, including back plate, back plate can be used as a fixing plane, 2 cable gland plate inserts for slim distribution boards with a width of 24 space units, top, knockout cable entry openings on the bottom, terminals pre-assembled on enclosure (no loss of space units). Wall trough with door frame, back plate can be used as a fixing plane , cable entry openings that are easy to knock out, 127 mm depth, terminals pre-assembled on enclosure (no loss of space units), 4 side fixing brackets. Sheet steel door with cam lo

Automation > Small distribution board
Compact Distribution Boxes

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton xComfort BF small distribution board
Catalog Number
283041
Model Code
BF-O-3/72-E
EAN
4015082830410
Product Length/Depth
150 mm
Product Height
610 mm
Product Width
555 mm
Product Weight
10.3 kg
Compliances
RoHS conform
Certifications
IEC/EN 61439-1
IEC/EN 62208
IEC/EN 61439-3

Delivery program

Type
Basic deviceBF flat DBOInstallation distribution boards
Application
Indoor (installation site)
Color
White
Traffic white (RAL 9016)

Technical Data - Electrical

Voltage rating at AC
415 V AC
Frequency rating of contacts
50 Hz / 60 Hz

Technical Data - Mechanical

Closure type
Other
Width in number of modular spacings
24
Mounting method
DIN-rail
Surface mounted (plaster)
Surface mounting
Material
Sheet steel, powder-coated
Degree of protection
IK07 (impact resistance)
IP30
Number of module space units per row
24
Number of rows
3
Terminal type
Screw terminals
PE and N terminal number and cross section
N: 2 x 25 mm² + 13 x 16 mm²
PE: 2 x 25 mm² + 13 x 16 mm²
Built-in depth
150 mm
Built-in height
610 mm
Built-in width
555 mm
Internal depth
131 mm
Cover/door color
White
Cover/door model
Closed
Cover/door type
Door
Single
Module rack type
Rail frame
Protective shrouding material
Metal

Temperature-rise verification as per IEC 60890

Heat diss. ambient 35°C delta T: 20°C wall mount middle encl. top (IEC 60890)
41 W
Heat diss. ambient 35°C delta T: 35°C wall mount middle encl. top (IEC 60890)
81 W
Heat diss. ambient 35°C delta T:20°C wall mount individ. encl. top (IEC 60890)
44 W
Heat diss. ambient 35°C delta T:20°C wall mount starting encl. top (IEC 60890)
42 W
Heat diss. ambient 35°C delta T:35°C wall mount individ. encl. top (IEC 60890)
89 W
Heat diss. ambient 35°C delta T:35°C wall mount starting encl. top (IEC 60890)
85 W

Design verification as per IEC/EN 61439 - technical data

Ambient operating temperature details
-5 °C - 40 °C

Design verification as per IEC/EN 61439

10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Not relevant to indoor installations.
10.2.5 Lifting
Does not apply to enclosures without lifting aids.
10.2.6 Mechanical impact
IK07
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
IP30
10.4 Clearances and creepage distances
Is the panel builder's responsibility.
10.5 Protection against electric shock
< 0.1 Ω; meets the product standard's requirements.
10.6 Incorporation of switching devices and components
Is the panel builder's responsibility.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Ui = 415 V AC
10.9.3 Impulse withstand voltage
Does not apply to basic enclosures as defined in EN 62208.
10.9.4 Testing of enclosures made of insulating material
Does not apply to metal enclosures.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility.
10.13 Mechanical function
Meets the product standard's requirements.

Additional information

Features
EMC-version
Earthing terminal block
Neutral terminal block
Fitted with:
Enclosure
Cable gland plate inserts (top)
DIN rail mounting frame
Front plates
Neutral-/protective conductor terminal
Door with Profi-Line three-point turn-lock
Functions
Basic device
Sealable
Protection class
I (earthed)
RAL-number
9016
Special features
IP30Protection Class ISteel sheet enclosure white (RAL 9016)
Used with
Basic device
BF flat distribution board
Installation distribution board

ETIM for 283041 Distribution boards (EC000214)
Feature Name Feature Value
Mounting method (EF000003) Surface mounted
Number of rows (EF000266) 3
Width in number of modular spacings (EF002950) 24
Type of covering (EF000339) Door
Cover model (EF009212) Closed
Type of door (EF004464) EV000426
Transparent cover/door (EF006244) No
Signal passing door (EF015941) No
With lock (EF006306) No
Type of closure (EF004462) Other
Housing material (EF001596) Steel
Built-in depth (EF000218) 150 mm
Built-in height (EF000332) 610 mm
Built-in width (EF000846) 555 mm
Inner depth (EF001131) 131 mm
Earthing terminal block (EF015776) Yes
Neutral terminal block (EF015777) Yes
DIN-rail (EF001134) Yes
With mounting plate (EF000118) No
Extension possible (EF001088) No
EMC-version (EF001062) Yes
Colour (EF000007) White
RAL-number (EF000116) 9016
Degree of protection (IP) (EF005474) IP30
Height (EF000040) 610 mm
Width (EF000008) 555 mm
Depth (EF000049) 150 mm
