View larger
Images are for illustrative purposes only. Please refer to data sheet for details

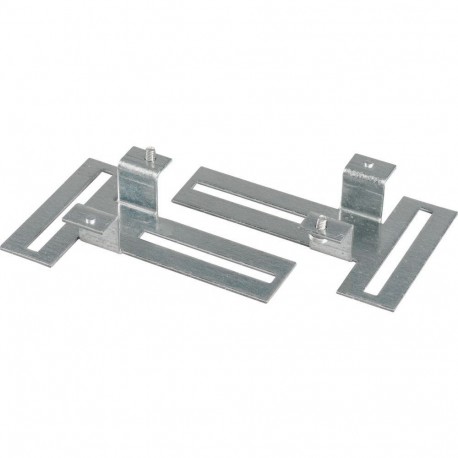

BPZ-CDB 102471 Y7-102471 EATON ELECTRIC Fixing material for cable duct H 8mm
BPZ-CDB
102471
Y7-102471
EATON - MOELLER
1 Pcs.
Fixing material for cable duct H=8mm
BPZ-CDB
Eaton xEnergy Basic LV systems Low voltage switchgear. Fixing material for cable duct H=8mm
Cable duct angle bracket, BPZ-CDB, height 8mm, fixing sundry for mounting cable ducts with depths of 80 mm vertically or horizontally (BPZ-CDB), 60 mm (BPZ-CDB23) or 40 mm (BPZ-CDB58) for wall enclosure and floor standing distribution board, mounted on base frame, for distribution board widths of 400 mm and 600 mm, BPZ-CDB../CP should be used for distribution board widths greater than 600 mm, material characteristic: sheet steel, zinc coated, equipment supplied: 2 cable duct angle brackets, various mounting accessories
Automation > Component for installation (switchgear cabinet)
Enclosures
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton xEnergy Basic installation component
Catalog Number
102471
Model Code
BPZ-CDB
EAN
4015081023592
Product Length/Depth
100 mm
Product Height
50 mm
Product Width
170 mm
Product Weight
0.2 kg
Compliances
RoHS conform
Delivery program
Type
Additional equipment
Model
Mounting kit
Application
Cable duct
Color
Stainless steel
Technical data - mechanical
Surface finishing
Galvanized
Mounting method
Floor standing distribution board
Material
Metal
Load capacity - max
0 kg
Housing material
Sheet steel
Suitable for enclosure building height
0 mm
Suitable for enclosure building length/depth
0 mm
Suitable for enclosure building width
400 mm
Additional information
Functions
Additional equipment
RAL-number
0
| Feature Name | Feature Value |
|---|---|
| Model (EF000010) | Mounting kit |
| Suitable for enclosure building width (EF000326) | 400 mm |
| Suitable for enclosure building height (EF009583) | 0 mm |
| Suitable for enclosure building depth (EF000327) | 0 mm |
| Width (EF000008) | 170 mm |
| Height (EF000040) | 50 mm |
| Depth (EF000049) | 100 mm |
| Max. load capacity (EF000258) | 0 kg |
| Material (EF002169) | Metal |
| Colour (EF000007) | Stainless steel |
| RAL-number (EF000116) | 0 |
