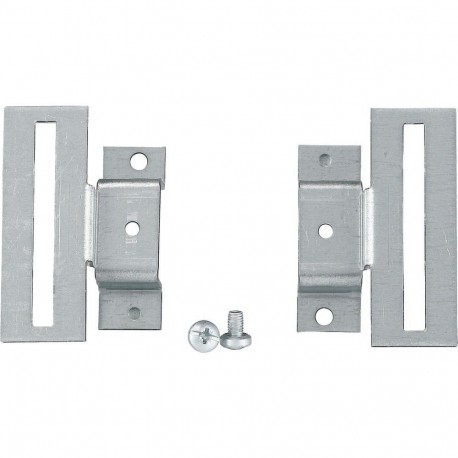

EATON - MOELLER BPZ-CDB8/CP BPZ-CDB8/CP 116915 Y7-116915 EATON ELECTRIC Fixing material for cable duct C-profile H 8mm View larger
Images are for illustrative purposes only. Please refer to data sheet for details

BPZ-CDB8/CP 116915 Y7-116915 EATON ELECTRIC Fixing material for cable duct C-profile H 8mm

BPZ-CDB8/CP

116915

Y7-116915

EATON - MOELLER

1 Pcs.

Fixing material for cable duct C-profile H=8mm BPZ-CDB8/CP Eaton xEnergy Basic LV systems Low voltage switchgear. Fixing material for cable duct C-profile H=8mm BPZ-CDB../CP cable duct angle bracket, height 8mm, fixing sundry for mounting C-section cable duct, BPZ-CDB../CP for mounting cable ducts with depths of 80 mm vertically or horizontally (BPZ-CDB/CP), 60 mm (BPZ-CDB23/CP) or 40 mm (BPZ-CDB58/CP) for AP surface-mounted- or floor standing distribution board, mounted on base frame, for distribution board widths of 600 mm, 800mm, 1000mm, 1200mm, in combination with BPZ-CP-… C section rail, material characteristic: sheet steel, zinc coated, equipment supplied: 2 cable duct angle brackets, various mounting accessories

Automation > Component for installation (switchgear cabinet)
Enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton xEnergy Basic installation component
Catalog Number
116915
Model Code
BPZ-CDB8/CP
EAN
4015081166534
Product Length/Depth
15 mm
Product Height
80 mm
Product Width
55 mm
Product Weight
0.1 kg
Compliances
RoHS conform

Delivery program

Type
Additional equipment
Model
Mounting kit
Application
Cable duct
Color
Stainless steel

Technical data - mechanical

Surface finishing
Galvanized
Mounting method
Floor standing distribution board
Material
Metal
Load capacity - max
0 kg
Housing material
Sheet steel
Suitable for enclosure building height
0 mm
Suitable for enclosure building length/depth
0 mm
Suitable for enclosure building width
600 mm

Additional information

Functions
Additional equipment
RAL-number
0

ETIM for 116915 Cabinets and enclosures (EC002620)
Feature Name Feature Value
Model (EF000010) Mounting kit
Suitable for enclosure building width (EF000326) 600 mm
Suitable for enclosure building height (EF009583) 0 mm
Suitable for enclosure building depth (EF000327) 0 mm
Width (EF000008) 55 mm
Height (EF000040) 80 mm
Depth (EF000049) 15 mm
Max. load capacity (EF000258) 0 kg
Material (EF002169) Metal
Colour (EF000007) Stainless steel
RAL-number (EF000116) 0
