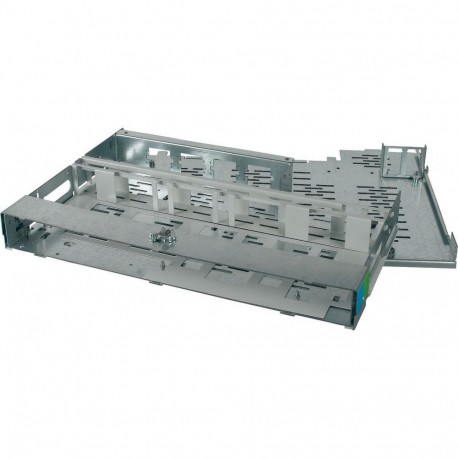

EATON - MOELLER XMW3006F XMW3006F 158539 Y7-158539 EATON ELECTRIC Fixed Compartment, H 750mm View larger
Images are for illustrative purposes only. Please refer to data sheet for details

XMW3006F 158539 Y7-158539 EATON ELECTRIC Fixed Compartment, H 750mm

XMW3006F

158539

Y7-158539

EATON - MOELLER

1 Pcs.

Fixed Compartment, H=750mm XMW3006F Eaton xEnergy Main LV systems LV switchgear. Fixed Compartment, H=750mm MCC individual components: withdrawable unit main module, height 750 mm for NZM, consisting of: base module, horizontal partition, mounting plate for PKZ/NZM, mounting plate for auxiliary current contacts, PVC shielding plate, indicator strips/position indicator, includes all screw accessories and various fixing materials. Height of 600 + 750 mm = fixed mounting module, the fronts need to be ordered separately for all modules (not included as standard with the drawer; the front is supplied as a compartment door).

Automation > Component for installation (switchgear cabinet)
Enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The XMW3006F 158539 Y7-158539 EATON ELECTRIC Fixed Compartment, H 750mm provides a segregated interior section inside electrical cabinets. Fixed compartments isolate specific control gear and power devices to improve safety and organization within switchgear assemblies. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Suitable for enclosure building width (EF000326): 600 mm
  • Suitable for enclosure building height (EF009583): 2000 mm
  • Suitable for enclosure building depth (EF000327): 600 mm
  • Width (EF000008): 520 mm
  • Height (EF000040): 750 mm
  • Depth (EF000049): 250 mm
  • Max. load capacity (EF000258): 0 kg
  • Material (EF002169): Metal
  • Colour (EF000007): Stainless steel
  • RAL-number (EF000116): 0

More info

▲

General specifications

Product Name
Eaton xEnergy Main LV switchgear
Catalog Number
158539
Model Code
XMW3006F
EAN
4015081550890
Product Length/Depth
250 mm
Product Height
750 mm
Product Width
520 mm
Product Weight
21.5 kg
Compliances
RoHS conform

Product specifications

Color
Stainless steel
Load capacity - max
0 kg
RAL-number
0
Suitable for enclosure building height
2000 mm
Suitable for enclosure building length/depth
600 mm
Suitable for enclosure building width
600 mm
Material
Metal
Model
Other
