View larger
Images are for illustrative purposes only. Please refer to data sheet for details

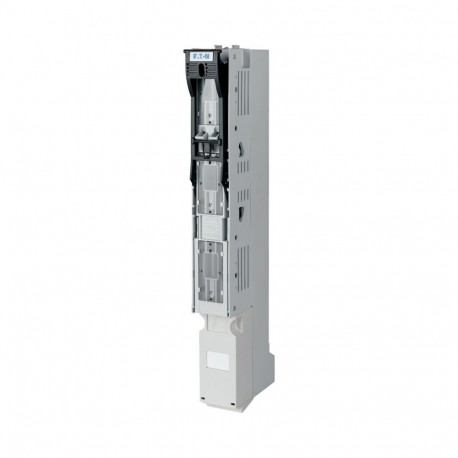

FCFSDNH00BB100 149430 Y7-149430 EATON ELECTRIC FCFSDNH00BB100
FCFSDNH00BB100
149430
Y7-149430
EATON - MOELLER
1 Pcs.
FCFSDNH00BB100
Low-voltage h.b.c fuse switch strip, 160A, size 00
Interval between phase centers 100mm size 00
Connectors > Fuse switch disconnector
Enclosures
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Low-voltage h.b.c fuse switch strip, 160A, size 00
Interval between phase centers 100mm size 00
Technical data ETIM 7.0
Low-voltage industrial components (EG000017) / Fuse switch disconnector (EC001040)
Electric engineering, automation, process control engineering / Low-voltage switch technology / Off-load switch, circuit breaker, control switch / Fuse switch disconnector ([email protected] [AKF058013])
Version as main switch
No
Version as safety switch
No
Max. rated operation voltage Ue AC
690 V
Rated permanent current Iu
160 A
Rated operation power at AC-23, 400 V
372 kW
Conditioned rated short-circuit current Iq
80 kA
Rated short-time withstand current lcw
0 kA
Suitable for fuses
NH00
Number of poles
3
With error protection
No
Type of electrical connection of main circuit
Bolt connection
Cable entry
Other
Equipped with connectors
No
Suitable for ground mounting
No
Suitable for front mounting 4-hole
No
Suitable for busbar mounting
Yes
Type of control element
Rocker lever
Position control element
Front side
Motor drive optional
Yes
Motor drive integrated
No
Version as emergency stop installation
No
Degree of protection (IP), front side
IP30
| Feature Name | Feature Value |
|---|---|
| Version as main switch (EF006981) | No |
| Version as safety switch (EF006985) | No |
| Max. rated operation voltage Ue AC (EF007355) | 690 V |
| Rated permanent current Iu (EF001389) | 160 A |
| Rated operation power at AC-23, 400 V (EF007027) | 0 kW |
| Conditioned rated short-circuit current Iq (EF001444) | 80 kA |
| Rated short-time withstand current lcw (EF007050) | 0 kA |
| Suitable for fuses (EF006692) | NH00 |
| Number of poles (EF001391) | 3 |
| With error protection (EF007384) | Yes |
| Type of electrical connection of main circuit (EF006819) | Bolt connection |
| Cable entry (EF000537) | Other |
| Equipped with connectors (EF011696) | Yes |
| Suitable for floor mounting (EF007243) | No |
| Suitable for front mounting (EF007246) | Yes |
| Suitable for busbar mounting (EF007259) | Yes |
| Type of control element (EF006976) | Cover grip |
| Position control element (EF009410) | Front |
| Motor drive optional (EF007386) | Yes |
| Motor drive integrated (EF006697) | No |
| Version as emergency stop installation (EF006959) | No |
| Degree of protection (IP), front side (EF003118) | IP30 |
