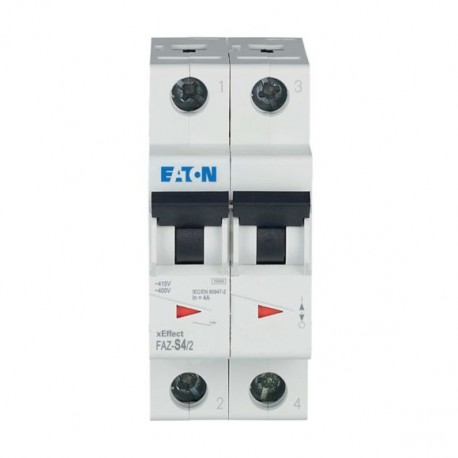

FAZ-S4/2 278808 Y7-278808 EATON ELECTRIC Miniature circuit breaker (MCB), 4A, 2p, S-Char, AC
FAZ-S4/2
278808
Y7-278808
EATON - MOELLER
1 Pcs.
Automation > Miniature circuit breaker (MCB)
Modular Switchgear – Industrial
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
FAZ-S4/2 278808 Y7-278808 EATON ELECTRIC Miniature circuit breaker (MCB), 4A, 2p, S-Char, AC produced by Eaton Moeller functions as a protective mechanical switching device capable of making, carrying, and breaking currents under normal circuit conditions, as well as specified overcurrent conditions.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Built-in depth (EF000218): 70.5 mm
- Number of poles (total) (EF008618): 2
- Number of protected poles (EF005548): 2
- Rated current (EF000227): 4 A
- Rated voltage (EF000228): 230 V
- Rated insulation voltage Ui (EF001366): 440 V
- Rated impulse withstand voltage Uimp (EF011980): 4 kV
- Voltage type (EF000187): AC
- Frequency (EF000416): 50 Hz
- Power loss (EF005387): 3.4 W
- Current limiting class (EF002568): 3
- Flush-mounted installation (EF007517): No
- Concurrently switching neutral conductor (EF005997): No
- Over voltage category (EF002569): 3
- Pollution degree (EF002570): 2
- Additional equipment possible (EF008148): Yes
More info
▲General specifications
RoHS conform
CE marking
CSA-C22.2 No. 235
IEC/EN 60898
IEC/EN 60947-2
UL 1077
North America (UL recognized, CSA certified)
CSA (Class No. 3215-30)
CSA (File No. 204453)
UL (File No. E177451)
EN45545-2
IEC 61373
Delivery Programme
- FAZ
- Miniature circuit breaker
Technical data - electrical
Technical data - mechanical
IP20 (IEC)
UL/CSA Type: -
IP40 (when fitted)
Design verification as per IEC/EN 61439 - technical data
Design verification as per IEC/EN 61439
Additional information
FAZ
