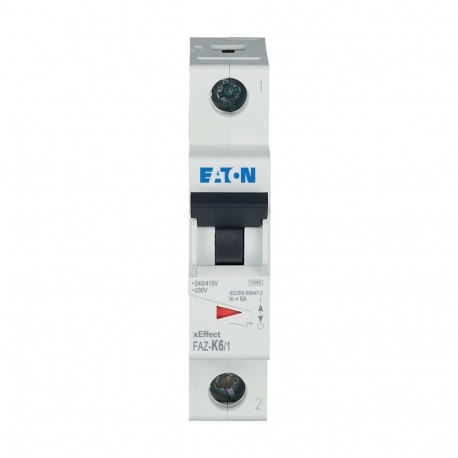

FAZ-K6/1 278595 Y7-278595 EATON ELECTRIC Miniature circuit breaker (MCB), 6A, 1p, K-Char, AC
FAZ-K6/1
278595
Y7-278595
EATON - MOELLER
12 Pcs.
Automation > Miniature circuit breaker (MCB)
Modular Switchgear – Industrial
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Eaton Moeller FAZ-K6/1 miniature circuit breaker functions as a reliable safety switch to protect sensitive electronic circuits against overcurrent and short circuits. These devices are commonly integrated into industrial control panels to protect instrumentation and automation hardware.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Built-in depth: 70.5 mm
- Release characteristic: K
- Number of poles (total): 1
- Number of protected poles: 1
- Rated current: 6 A
- Rated voltage: 230 V
- Rated insulation voltage Ui: 440 V
- Rated impulse withstand voltage Uimp: 4 kV
- Voltage type: AC
- Frequency: 50 Hz
- Power loss: 2.3 W
- Current limiting class: 3
- Flush-mounted installation: No
- Concurrently switching neutral conductor: No
- Over voltage category: 3
- Pollution degree: 2
More info
▲General specifications
RoHS conform
CSA (File No. 204453)
North America (UL recognized, CSA certified)
CE marking
IEC/EN 60947-2
UL 1077
CSA (Class No. 3215-30)
IEC/EN 60898
UL (Category Control Number QVNU2, QVNU8)
CSA-C22.2 No. 235
EN45545-2
IEC 61373
Delivery Programme
- FAZ
- Miniature circuit breaker
Technical data - electrical
Technical data - mechanical
IP40 (when fitted)
UL/CSA Type: -
IP20
Design verification as per IEC/EN 61439 - technical data
Additional information
FAZ
