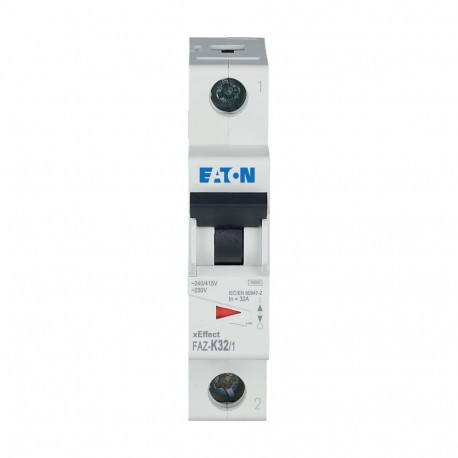

FAZ-K32/1 278602 Y7-278602 EATON ELECTRIC Miniature circuit breaker (MCB), 32A, 1p, K-Char, AC
FAZ-K32/1
278602
Y7-278602
EATON - MOELLER
1 Pcs.
Automation > Miniature circuit breaker (MCB)
Modular Switchgear – Industrial
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Miniature circuit breaker (MCB), 32A, 1p, K-Char, AC manufactured by Eaton Moeller under part number FAZ-K32/1 278602 Y7-278602 provides dependable overcurrent protection for electrical installations. Devices of this category are standard additions to control cabinets, designed to isolate circuits during overloads or short-circuit faults. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Built-in depth (EF000218): 70.5 mm
- Release characteristic (EF000889): K
- Number of poles (total) (EF008618): 1
- Number of protected poles (EF005548): 1
- Rated current (EF000227): 32 A
- Rated voltage (EF000228): 230 V
- Rated insulation voltage Ui (EF001366): 440 V
- Rated impulse withstand voltage Uimp (EF011980): 4 kV
- Voltage type (EF000187): AC
- Frequency (EF000416): 50 Hz
- Power loss (EF005387): 3.1 W
- Current limiting class (EF002568): 3
- Flush-mounted installation (EF007517): No
- Concurrently switching neutral conductor (EF005997): No
- Over voltage category (EF002569): 3
- Pollution degree (EF002570): 2
More info
▲General specifications
RoHS conform
CE marking
IEC/EN 60947-2
IEC/EN 60898
UL (Category Control Number QVNU2, QVNU8)
CSA-C22.2 No. 235
UL (File No. E177451)
CSA (Class No. 3215-30)
UL 1077
North America (UL recognized, CSA certified)
EN45545-2
IEC 61373
Delivery Programme
- FAZ
- Miniature circuit breaker
Technical data - electrical
Technical data - mechanical
IP20 (IEC)
UL/CSA Type: -
IP20
Design verification as per IEC/EN 61439 - technical data
Additional information
Miniature circuit breaker
