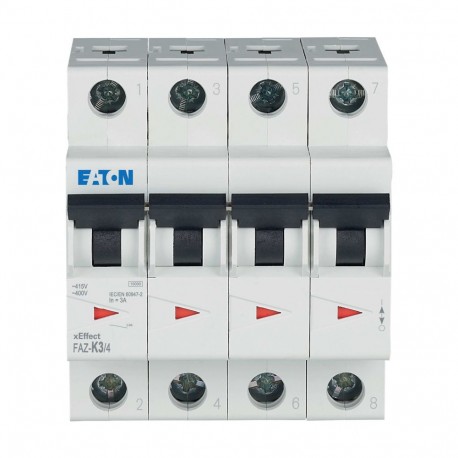

FAZ-K3/4 279093 Y7-279093 EATON ELECTRIC Miniature circuit breaker (MCB), 3A, 4p, K-Char, AC
FAZ-K3/4
279093
Y7-279093
EATON - MOELLER
1 Pcs.
Automation > Miniature circuit breaker (MCB)
Modular Switchgear – Industrial
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Designed for specialized protection profiles, the FAZ-K3/4 279093 Y7-279093 EATON ELECTRIC Miniature circuit breaker (MCB), 3A, 4p, K-Char, AC functions as an overcurrent breaker that trips rapidly during short circuits and sustained overloads. Miniature circuit breakers are essential safety elements in industrial electrical control panels.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Built-in depth (EF000218): 70.5 mm
- Release characteristic (EF000889): K
- Number of poles (total) (EF008618): 4
- Number of protected poles (EF005548): 4
- Rated current (EF000227): 3 A
- Rated voltage (EF000228): 400 V
- Rated insulation voltage Ui (EF001366): 440 V
- Rated impulse withstand voltage Uimp (EF011980): 4 kV
- Voltage type (EF000187): AC
- Frequency (EF000416): 50 Hz
- Power loss (EF005387): 4.2 W
- Current limiting class (EF002568): 3
- Flush-mounted installation (EF007517): No
- Concurrently switching neutral conductor (EF005997): Yes
- Over voltage category (EF002569): 3
- Pollution degree (EF002570): 2
More info
▲General specifications
IEC/EN 60898
EN45545-2
IEC 61373
Delivery Programme
- FAZ
- Miniature circuit breaker
Technical data - electrical
Technical data - mechanical
IP20
Design verification as per IEC/EN 61439 - technical data
Additional information
Concurrently switching N-neutral
FAZ
