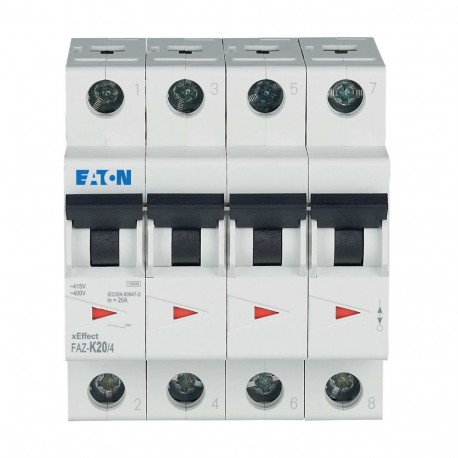

FAZ-K20/4 279100 Y7-279100 EATON ELECTRIC Miniature circuit breaker (MCB), 20A, 4p, K-Char, AC
FAZ-K20/4
279100
Y7-279100
EATON - MOELLER
1 Pcs.
Automation > Miniature circuit breaker (MCB)
Modular Switchgear – Industrial
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Eaton Moeller part number FAZ-K20/4 (279100) is a miniature circuit breaker (MCB) engineered for precise overcurrent and short-circuit protection in AC electrical distribution systems. Protective devices of this type are widely installed in control panels and industrial switchgear to prevent damage from electrical overloads.
Pricing, lead time, and stock availability are confirmed per enquiry through an RFQ.
- Built-in depth (EF000218): 70.5 mm
- Release characteristic (EF000889): K
- Number of poles (total) (EF008618): 4
- Number of protected poles (EF005548): 4
- Rated current (EF000227): 20 A
- Rated voltage (EF000228): 400 V
- Rated insulation voltage Ui (EF001366): 440 V
- Rated impulse withstand voltage Uimp (EF011980): 4 kV
- Voltage type (EF000187): AC
- Frequency (EF000416): 50 Hz
- Power loss (EF005387): 12 W
- Current limiting class (EF002568): 3
- Flush-mounted installation (EF007517): No
- Concurrently switching neutral conductor (EF005997): Yes
- Over voltage category (EF002569): 3
- Pollution degree (EF002570): 2
More info
▲General specifications
IEC/EN 60947-2
EN45545-2
IEC 61373
Delivery Programme
- FAZ
- Miniature circuit breaker
Technical data - electrical
Technical data - mechanical
IP20
Design verification as per IEC/EN 61439 - technical data
Additional information
Additional equipment possible
Miniature circuit breaker
