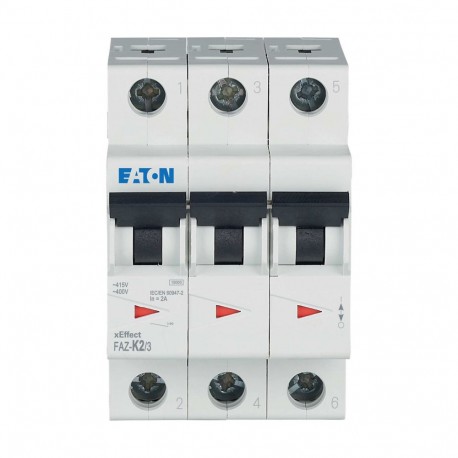

FAZ-K2/3 278904 Y7-278904 EATON ELECTRIC Miniature circuit breaker (MCB), 2A, 3p, K-Char, AC
FAZ-K2/3
278904
Y7-278904
EATON - MOELLER
1 Pcs.
Automation > Miniature circuit breaker (MCB)
Modular Switchgear – Industrial
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Eaton Moeller part number FAZ-K2/3 is a FAZ-K2/3 278904 Y7-278904 EATON ELECTRIC Miniature circuit breaker (MCB), 2A, 3p, K-Char, AC protecting sensitive three-phase electrical loads against overloads and short circuits with specialized tripping characteristics. Miniature circuit breakers are essential for maintaining safety in industrial automation systems. Final pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Built-in depth: 70.5 mm
- Release characteristic: K
- Number of poles (total): 3
- Number of protected poles: 3
- Rated current: 2 A
- Rated voltage: 400 V
- Rated insulation voltage Ui: 440 V
- Rated impulse withstand voltage Uimp: 4 kV
- Voltage type: AC
- Frequency: 50 Hz
- Power loss: 4.3 W
- Current limiting class: 3
- Flush-mounted installation: No
- Concurrently switching neutral conductor: No
- Over voltage category: 3
- Pollution degree: 2
More info
▲General specifications
RoHS conform
CSA (Class No. 3215-30)
CSA (File No. 204453)
North America (UL recognized, CSA certified)
CSA-C22.2 No. 235
IEC/EN 60898
IEC/EN 60947-2
UL (Category Control Number QVNU2, QVNU8)
UL 1077
CE marking
EN45545-2
IEC 61373
Delivery Programme
- FAZ
- Miniature circuit breaker
Technical data - electrical
Technical data - mechanical
UL/CSA Type: -
IP20
IP40 (when fitted)
Design verification as per IEC/EN 61439 - technical data
Additional information
FAZ
