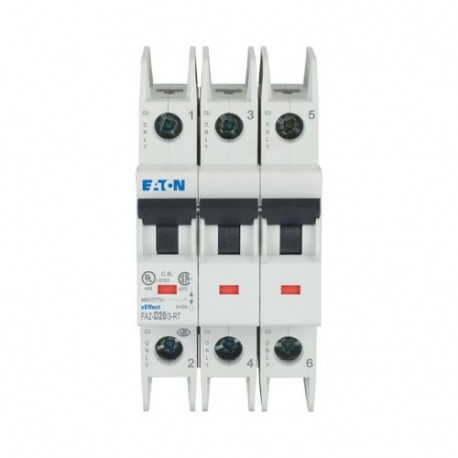

FAZ-D20/3-RT 102311 Y7-102311 EATON ELECTRIC Miniature circuit breaker (MCB), 20A, 3p, D-Char, AC
FAZ-D20/3-RT
102311
Y7-102311
EATON - MOELLER
1 Pcs.
Automation > Miniature circuit breaker (MCB)
Modular Switchgear – Industrial
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The FAZ-D20/3-RT 102311 Y7-102311 EATON ELECTRIC Miniature circuit breaker (MCB), 20A, 3p, D-Char, AC is an industrial miniature circuit breaker engineered to protect three-phase power circuits from damaging overcurrent and short-circuit events. Multi-pole circuit breakers provide essential safety isolation in machine control panels and power distribution networks. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Built-in depth (EF000218): 70.5 mm
- Release characteristic (EF000889): D
- Number of poles (total) (EF008618): 3
- Number of protected poles (EF005548): 3
- Rated current (EF000227): 20 A
- Rated voltage (EF000228): 415 V
- Rated insulation voltage Ui (EF001366): 440 V
- Rated impulse withstand voltage Uimp (EF011980): 4 kV
- Voltage type (EF000187): AC
- Frequency (EF000416): 50 Hz
- Power loss (EF005387): 6.6 W
- Current limiting class (EF002568): 3
- Flush-mounted installation (EF007517): No
- Concurrently switching neutral conductor (EF005997): No
- Over voltage category (EF002569): 3
- Pollution degree (EF002570): 2
More info
▲General specifications
UL 1077
CSA Std. C22.2 No.235
UL 489, CSA C22.2 No. 5
UL 489
CSA-C22.2 No. 5-09
North America (UL listed, CSA certified)
IEC/EN 60947-2
UL (Category Control Number DIVQ)
Specially designed for North America, suitable as BCPD
CE marking
UL (File No. E235139)
CSA (File No. 204453)
CSA (Class No. 1432-01)
EN45545-2
IEC 61373
Delivery program
- FAZ-RT
- Miniature circuit breaker
Technical data - electrical
Technical data - mechanical
IP40 (when fitted)
IP20
IP20 (IEC)
Max. 2.4 Nm
UL: 2.4 Nm (21 lb-in) for AWG 18 - AWG 12
UL: 2.8 Nm (25 lb-in) for AWG 10 - AWG 8
Design verification as per IEC/EN - technical data
Design verification as per IEC/EN 61439
Additional information
Miniature circuit breaker
