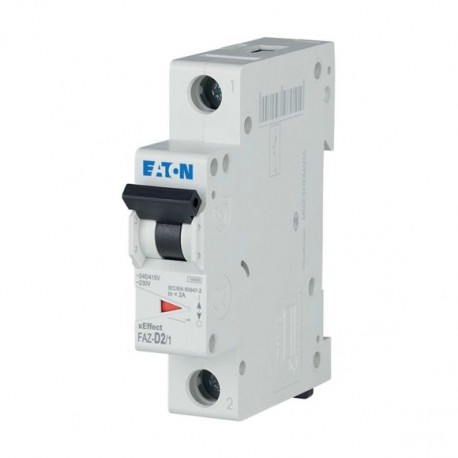

FAZ-D2/1 278572 Y7-278572 EATON ELECTRIC Miniature circuit breaker (MCB), 2A, 1p, type D characteristic
FAZ-D2/1
278572
Y7-278572
EATON - MOELLER
12 Pcs.
Automation > Miniature circuit breaker (MCB)
Modular Switchgear – Industrial
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The Eaton Moeller FAZ-D2/1 miniature circuit breaker provides precise overcurrent protection, automatically isolating circuits when current levels exceed safe parameters. These compact switches are deployed extensively within electrical distribution panels to protect sensitive control gear.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Built-in depth (EF000218): 70.5 mm
- Release characteristic (EF000889): D
- Number of poles (total) (EF008618): 1
- Number of protected poles (EF005548): 1
- Rated current (EF000227): 2 A
- Rated voltage (EF000228): 230 V
- Rated insulation voltage Ui (EF001366): 440 V
- Rated impulse withstand voltage Uimp (EF011980): 4 kV
- Voltage type (EF000187): AC
- Frequency (EF000416): 50 Hz
- Power loss (EF005387): 1.1 W
- Current limiting class (EF002568): 3
- Flush-mounted installation (EF007517): No
- Concurrently switching neutral conductor (EF005997): No
- Over voltage category (EF002569): 3
- Pollution degree (EF00570): 2
More info
▲General specifications
RoHS conform
IEC/EN 60947-2
UL (File No. E177451)
North America (UL recognized, CSA certified)
UL 1077
CSA (Class No. 3215-30)
CSA (File No. 204453)
CE marking
IEC/EN 60898
CSA-C22.2 No. 235
EN45545-2
IEC 61373
Delivery Programme
- FAZ
- Miniature circuit breaker
Technical data - electrical
Technical data - mechanical
IP20 (IEC)
IP20
Design verification as per IEC/EN 61439 - technical data
Design verification as per IEC/EN 61439
Additional information
Miniature circuit breaker
