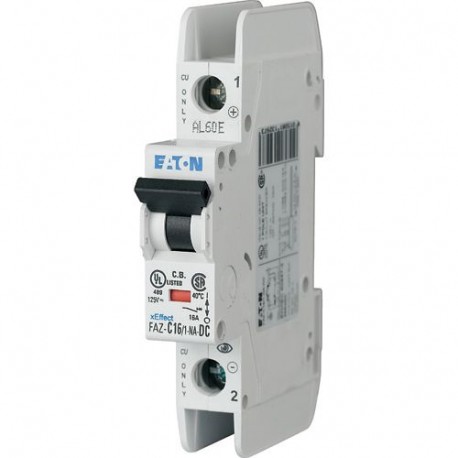

FAZ-C25/1-NA-DC 113764 Y7-113764 EATON ELECTRIC FAZ-C25/1-NA-DC Over current switch, 25A, 1p, C-Char, DC cur..
FAZ-C25/1-NA-DC
113764
Y7-113764
EATON - MOELLER
1 Pcs.
Automation > Miniature circuit breaker (MCB)
Modular Switchgear – Industrial
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Eaton Moeller over current switch (FAZ-C25/1-NA-DC) is a specialized protective device engineered to safeguard direct current electrical circuits against overloads and short circuits. Protection devices of this type are widely utilized in industrial control cabinets and DC distribution panels to interrupt fault currents before damage occurs to downstream equipment.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Built-in depth (EF000218): 70.5 mm
- Release characteristic (EF000889): C
- Number of poles (total) (EF008618): 1
- Number of protected poles (EF005548): 1
- Rated current (EF000227): 25 A
- Rated voltage (EF000228): 250 V
- Rated insulation voltage Ui (EF001366): 440 V
- Rated impulse withstand voltage Uimp (EF011980): 4 kV
- Voltage type (EF000187): DC
- Frequency (EF000416): 50 Hz
- Power loss (EF005387): 3 W
- Current limiting class (EF002568): 3
- Flush-mounted installation (EF007517): false
- Concurrently switching neutral conductor (EF005997): false
- Over voltage category (EF002569): 3
- Pollution degree (EF002570): 2
More info
▲General specifications
UL 489, CSA C22.2 No. 5
EN45545-2
IEC 61373
Product specifications
Miniature circuit breaker
