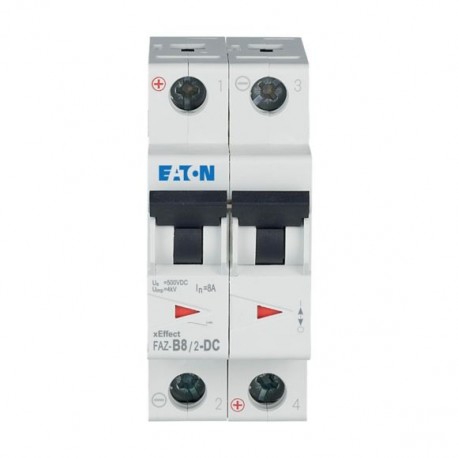

FAZ-B8/2-DC 305867 Y7-305867 EATON ELECTRIC Int. circuit breaker FAZ, 8A, 2P, curve B, for DC
FAZ-B8/2-DC
305867
Y7-305867
EATON - MOELLER
1 Pcs.
Automation > Miniature circuit breaker (MCB)
Modular Switchgear – Industrial
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
FAZ-B8/2-DC 305867 Y7-305867 EATON ELECTRIC Int. circuit breaker FAZ, 8A, 2P, curve B, for DC operates as a direct current circuit breaker designed to safeguard DC power applications against overcurrent and short-circuit faults. Such circuit breakers are commonly implemented in renewable energy setups, battery banks, and industrial DC control loops. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Built-in depth (EF000218): 75.5 mm
- Release characteristic (EF000889): B
- Number of poles (total) (EF008618): 2
- Number of protected poles (EF005548): 2
- Rated current (EF000227): 8 A
- Rated voltage (EF000228): 500 V
- Rated insulation voltage Ui (EF001366): 440 V
- Rated impulse withstand voltage Uimp (EF011980): 4 kV
- Voltage type (EF000187): DC
- Frequency (EF000416): 50 Hz
- Power loss (EF005387): 2.9 W
- Current limiting class (EF002568): 3
- Flush-mounted installation (EF007517): No
- Concurrently switching neutral conductor (EF005997): No
- Over voltage category (EF002569): 3
- Pollution degree (EF002570): 2
More info
▲General specifications
IEC 61373
