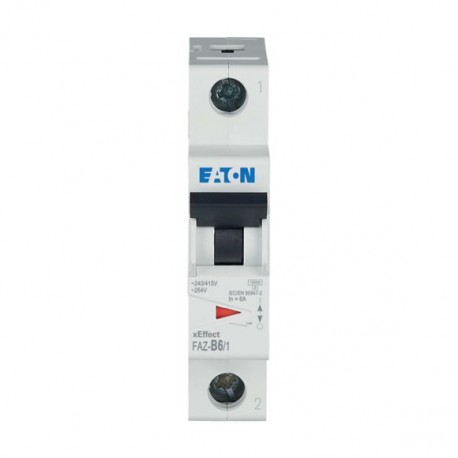

FAZ-B6/1 278529 Y7-278529 EATON ELECTRIC Miniature circuit breaker (MCB), 6A, 1p, B-Char, AC
FAZ-B6/1
278529
Y7-278529
EATON - MOELLER
12 Pcs.
Automation > Miniature circuit breaker (MCB)
Modular Switchgear – Industrial
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Branch circuit protection is efficiently handled by the FAZ-B6/1 278529 Y7-278529 EATON ELECTRIC Miniature circuit breaker within commercial electrical enclosures. These essential switching components interrupt abnormal current flows to safeguard sensitive machinery and maintain operational safety across facilities.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Built-in depth (EF000218): 70.5 mm
- Release characteristic (EF000889): B
- Number of poles (total) (EF008618): 1
- Number of protected poles (EF005548): 1
- Rated current (EF000227): 6 A
- Rated voltage (EF000228): 230 V
- Rated insulation voltage Ui (EF001366): 440 V
- Rated impulse withstand voltage Uimp (EF011980): 4 kV
- Voltage type (EF000187): AC
- Frequency (EF000416): 50 Hz
- Power loss (EF005387): 1.8 W
- Current limiting class (EF002568): 3
- Flush-mounted installation (EF007517): No
- Concurrently switching neutral conductor (EF005997): No
- Over voltage category (EF002569): 3
- Pollution degree (EF002570): 2
More info
▲General specifications
RoHS conform
North America (UL recognized, CSA certified)
IEC/EN 60898
UL (Category Control Number QVNU2, QVNU8)
IEC/EN 60947-2
CSA-C22.2 No. 235
UL (File No. E177451)
CSA (Class No. 3215-30)
CSA (File No. 204453)
CE marking
EN45545-2
IEC 61373
Delivery Programme
- FAZ
- Miniature circuit breaker
Technical data - electrical
Technical data - mechanical
IP20
IP20 (IEC)
UL/CSA Type: -
Design verification as per IEC/EN 61439 - technical data
Design verification as per IEC/EN 61439
Additional information
Miniature circuit breaker
