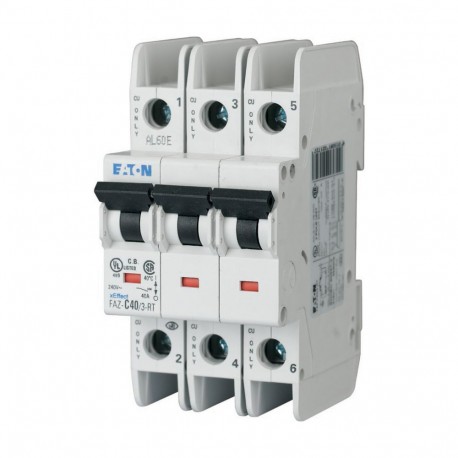

FAZ-B4/3-RT 132773 Y7-132773 EATON ELECTRIC Miniature circuit breaker (MCB), 4A, 3p, B-Char, AC
FAZ-B4/3-RT
132773
Y7-132773
EATON - MOELLER
1 Pcs.
Automation > Miniature circuit breaker (MCB)
Modular Switchgear – Industrial
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Eaton Moeller FAZ-B4/3-RT miniature circuit breaker protects three-phase electrical circuits against overloads and short circuits by automatically breaking the current path when limits are exceeded.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Built-in depth (EF000218): 70.5 mm
- Release characteristic (EF000889): B
- Number of poles (total) (EF008618): 3
- Number of protected poles (EF005548): 3
- Rated current (EF000227): 4 A
- Rated voltage (EF000228): 415 V
- Rated insulation voltage Ui (EF001366): 440 V
- Rated impulse withstand voltage Uimp (EF011980): 4 kV
- Voltage type (EF000187): AC
- Frequency (EF000416): 50 Hz
- Power loss (EF005387): 4.2 W
- Current limiting class (EF002568): 3
- Flush-mounted installation (EF007517): No
- Concurrently switching neutral conductor (EF005997): No
- Over voltage category (EF002569): 3
- Pollution degree (EF002570): 2
More info
▲General specifications
CE marking
UL 489, CSA C22.2 No. 5
CSA (File No. 204453)
CSA-C22.2 No. 5-09
IEC/EN 60947-2
UL (Category Control Number DIVQ)
Specially designed for North America, suitable as BCPD
IEC 60947-2
North America (UL listed, CSA certified)
UL (File No. E235139)
CSA (Class No. 1432-01)
EN45545-2
IEC 61373
Delivery program
- FAZ-RT
- Miniature circuit breaker
Technical data - electrical
Technical data - mechanical
IP20 (IEC)
UL/CSA Type: -
IP40 (when fitted)
UL: 2.4 Nm (21 lb-in) for AWG 18 - AWG 12
Max. 2.4 Nm
UL: 4 Nm (36 lb-in) for AWG 6
Design verification as per IEC/EN - technical data
Design verification as per IEC/EN 61439
Additional information
Miniature circuit breaker
