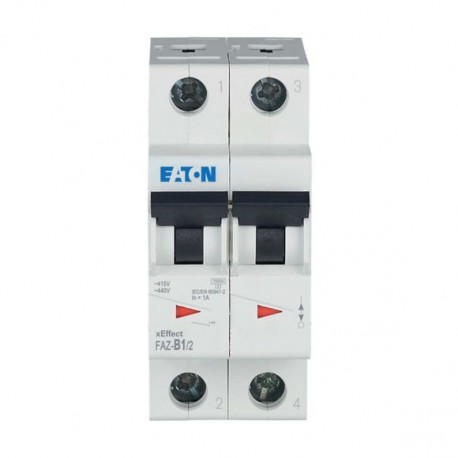

FAZ-B1/2 278719 Y7-278719 EATON ELECTRIC Miniature circuit breaker (MCB), 1A, 2p, type B characteristic
FAZ-B1/2
278719
Y7-278719
EATON - MOELLER
1 Pcs.
Automation > Miniature circuit breaker (MCB)
Modular Switchgear – Industrial
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
This miniature circuit breaker (MCB), 1A, 2p, type B characteristic from Eaton Moeller functions as an automatic safety switch designed to disconnect power during overcurrent events. Such breakers play a fundamental role in safeguarding commercial and industrial electrical assets from fault conditions. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Built-in depth (EF000218): 70.5 mm
- Release characteristic (EF000889): B
- Number of poles (total) (EF008618): 2
- Number of protected poles (EF005548): 2
- Rated current (EF000227): 1 A
- Rated voltage (EF000228): 400 V
- Rated insulation voltage Ui (EF001366): 440 V
- Rated impulse withstand voltage Uimp (EF011980): 4 kV
- Voltage type (EF000187): AC
- Frequency (EF000416): 50 Hz
- Power loss (EF005387): 2.4 W
- Current limiting class (EF002568): 3
- Flush-mounted installation (EF007517): No
- Concurrently switching neutral conductor (EF005997): No
- Over voltage category (EF002569): 3
- Pollution degree (EF002570): 2
More info
▲General specifications
RoHS conform
UL (File No. E177451)
North America (UL recognized, CSA certified)
UL 1077
CSA (File No. 204453)
IEC/EN 60947-2
UL (Category Control Number QVNU2, QVNU8)
CE marking
CSA (Class No. 3215-30)
CSA-C22.2 No. 235
EN45545-2
IEC 61373
Delivery Programme
- FAZ
- Miniature circuit breaker
Technical data - electrical
Technical data - mechanical
IP20 (IEC)
IP20
Design verification as per IEC/EN 61439 - technical data
Design verification as per IEC/EN 61439
Additional information
Miniature circuit breaker
