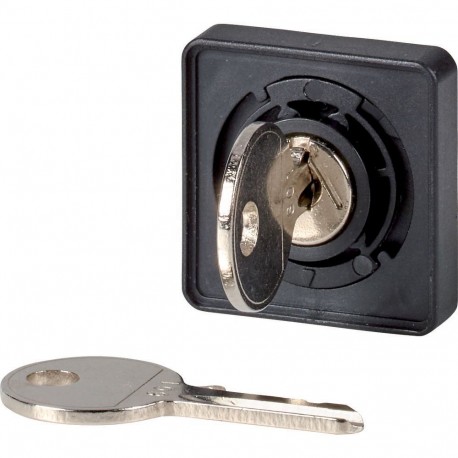

EATON - MOELLER EZ/S-P-TM EZ/S-P-TM 047002 Y7-47002 EATON ELECTRIC Front element, for TM switch, EZ-, key operation lock mechanism, ro.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

EZ/S-P-TM 047002 Y7-47002 EATON ELECTRIC Front element, for TM switch, EZ-, key operation lock mechanism, ro..

EZ/S-P-TM

047002

Y7-47002

EATON - MOELLER

1 Pcs.

Front element, for TM switch, EZ-, key operation lock mechanism, ronis no.P Elementro front; For switches TM; EZ; locking Mechanism with key; RONIS-No..P Eaton Moeller® series EZ Front element, for TM switch, EZ-, key operation lock mechanism, ronis no.P EZ/S-P-TM Front element for TM switch, Basic function: Locking arrangements, Function: Key operation lock mechanism, RONIS-lock 60 degree, For use with: Centre mounting (EZ)

Automation > Handle for power circuit breaker
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Front element, for TM switch, EZ-, key operation lock mechanism, ro.. items like the Eaton Moeller EZ/S-P-TM offer restricted access control and positive locking for modular panel switches. System engineers use key-operated front elements to prevent unauthorized operation of critical industrial control circuits and machinery.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • With restart blockage (EF004054): No
  • With key lock (EF026057): Yes
  • Padlock locking (EF001163): No
  • Colour (EF000007): Black
  • Suitable for emergency stop (EF001433): No
  • With extension shaft (EF001434): No
  • Suitable for power circuit breaker (EF005863): No
  • Suitable for switch disconnector (EF007252): Yes

More info

▲

General specifications

Product Name
Eaton Moeller® series EZ Accessory Front element for TM switch
Catalog Number
047002
Model Code
EZ/S-P-TM
EAN
4015080470021
Product Length/Depth
20 mm
Product Height
30 mm
Product Width
30 mm
Product Weight
0.027 kg
Compliances
CE
Catalog Notes
The RONIS lock for 60° can be used for other switching angles as well (for example) if the key withdrawability characteristics match the switch.

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
