View larger
Images are for illustrative purposes only. Please refer to data sheet for details

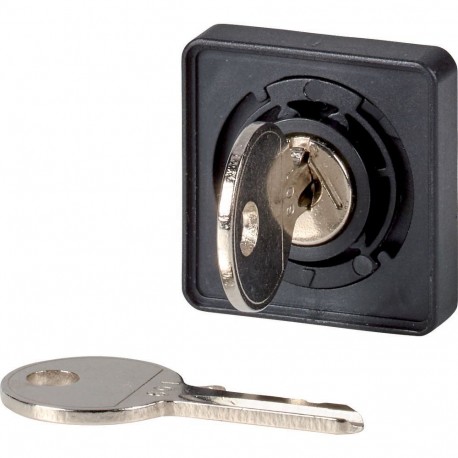

EZ/S-D-TM 046994 Y7-46994 EATON ELECTRIC Front element, for TM switch, EZ-, key operation lock mechanism, ro..
EZ/S-D-TM
046994
Y7-46994
EATON - MOELLER
1 Pcs.
Front element, for TM switch, EZ-, key operation lock mechanism, ronis no.D
Elementro front; For switches TM; EZ; locking Mechanism with key; KABA-No.D
Eaton Moeller® series EZ Front element, for TM switch, EZ-, key operation lock mechanism, ronis no.D EZ/S-D-TM
Front element for TM switch, Basic function: Locking arrangements, Function: Key operation lock mechanism, RONIS-lock 60 degree, For use with: Centre mounting (EZ)
Automation > Handle for power circuit breaker
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton Moeller® series EZ Accessory Front element for TM switch
Catalog Number
046994
Model Code
EZ/S-D-TM
EAN
4015080469940
Product Length/Depth
20 mm
Product Height
30 mm
Product Width
30 mm
Product Weight
0.027 kg
Compliances
CE
Catalog Notes
The RONIS lock for 60° can be used for other switching angles as well (for example) if the key withdrawability characteristics match the switch.
| Feature Name | Feature Value |
|---|---|
| With restart blockage (EF004054) | No |
| With key lock (EF026057) | Yes |
| Padlock locking (EF001163) | No |
| Colour (EF000007) | Black |
| Suitable for emergency stop (EF001433) | No |
| With extension shaft (EF001434) | No |
| Suitable for power circuit breaker (EF005863) | No |
| Suitable for switch disconnector (EF007252) | Yes |
| Degree of protection (NEMA) (EF011959) | Other |
