View larger
Images are for illustrative purposes only. Please refer to data sheet for details

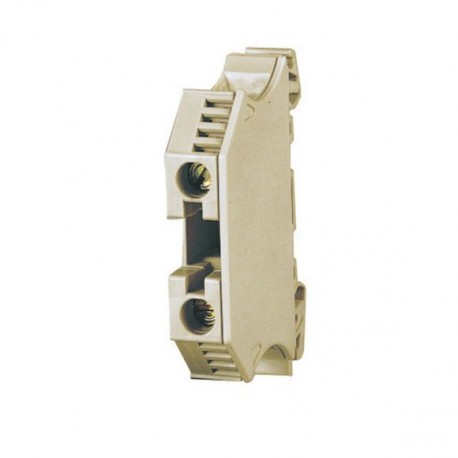

+DZA16S(*) 200406 Y7-200406 EATON ELECTRIC Extra charge for additional tapping, 3p. Can only be sold assembl..
+DZA16S(*)
200406
Y7-200406
EATON - MOELLER
1 Pcs.
Extra charge for additional tapping, 3p. Can only be sold assembled.
+DZA16S(*)
Extra charge for additional tapping, 3p
Additional secondary-side tapping for three-phase transformers, can be used for DTZ
Automation > Accessories/spare parts for low-voltage switch technology
Transformers
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Extra charge for additional tapping, 3p
Additional secondary-side tapping for three-phase transformers, can be used for DTZ
General specifications
Product name
Eaton Moeller® series DZA Accessory Additional tapping
Part no.
+DZA16S(*)
Product Length/Depth
40 millimetre
Product height
45 millimetre
Product width
9 millimetre
Product weight
0.05 kilogram
Certifications
UL/CSA certification not required
Product Tradename
DZA
Product Type
Accessory
Product Sub Type
Additional tapping
General information
Accessories
Additional tappings
Accessory/spare part type
Other
Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
40 °C
Options
Can be retrofitted to Secondary side
Product category
Accessories
Type
Additional tapping
Electrical rating
Rated operational current (Ie)
Max. 16 A
Design verification
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
Technical data ETIM 9.0
Low-voltage industrial components (EG000017) / Accessories/spare parts for low-voltage switch technology (EC002498)
Electric engineering, automation, process control engineering / Low-voltage switch technology / Component for low-voltage switching technology / Component for low-voltage switching technology (accessories) (ecl@ss13-27-37-13-92 [AKN570018])
Type of accessory/spare part
Other
Accessory
Yes
Spare part
No
| Feature Name | Feature Value |
|---|---|
| Type of accessory/spare part (EF000215) | Other |
| Accessory (EF013236) | Yes |
| Spare part (EF013237) | No |
